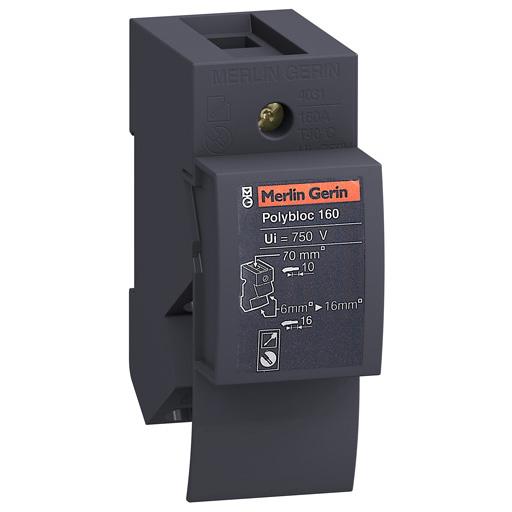

Linergy Polybloc 4 moduler 6 huller 160 A 1P
| Varenr: | 04031 |
| El nr: | 3322040318 |
| EAN13 nr: | 3303430040316 |
| Pakning: | 1stk |
 |
| [Ie] rated operational current | 160 A |
| [Ipk] rated peak withstand current | 32 kA |
| [Ui] rated insulation voltage | 750 V |
| [Ui] rated insulation voltage | 750 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Additional information | Supplied with a cover that guides the cables |
| Bredde | 36 mm |
| Dedicated enclosure type | Pack enclosure Cubicle Floor-standing enclosure Wall-mounted enclosure |
| Distribution block name | Polybloc |
| Dybde | 70 mm |
| Electrical connection | Spring type terminals for distribution 6 x 16 mm˛ per phase Tunnel type terminals for supply <= 70 mm˛ |
| Enhedens korte navn | Polybloc |
| Fixing mode | Clipped onto a modular rail |
| Hřjde | 95 mm |
| IP degree of protection | IPxx B |
| LV panel system name | Prisma Plus System G Prisma Plus System P |
| Montagevejledning | DIN skinne |
| Polbeskrivelse | 1P |
| Product destination | For device up to 160 A in an enclosure |
| Product or component type | 160 A Polybloc distribution block 1P |
| Productcertificeringer | ASEFA KEMA |
| Produkttype | Distributions blok |
| Range of product | Prisma Plus System G Prisma Plus System P |
| RoHS EUR conformity date | 0836 |
| RoHS EUR conformity date(YYWW) | 0836 |
| RoHS EUR status | Compliant |
| Standarder | IEC 61439-2 |
| Supply | Via tunnel type terminals |
| Tilslutningsklemmer | Distribution: spring terminal, 6 x 16 mm˛ (rigid) Distribution: spring terminal, 6 x 16 mm˛ (flexible) Forsyning tunnel type terminal <= 70 mm2 siv Forsyning tunnel type terminal <= 70 mm2 fleksibel |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
