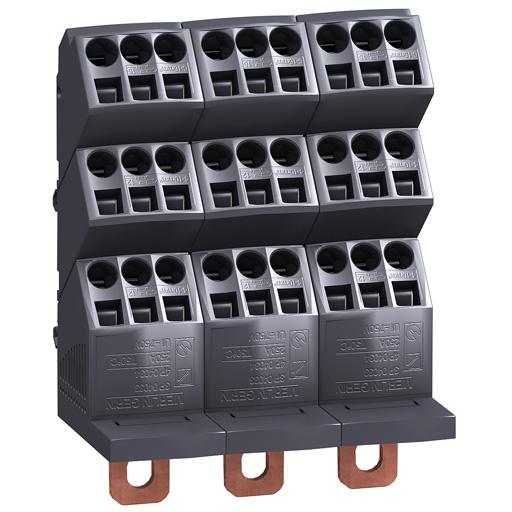

Linergy Polybloc 27 huller 250 A 3P
| Varenr: | 04033 |
| El nr: | 3322040334 |
| EAN13 nr: | 3303430040330 |
| Pakning: | 1stk |
 |
| [Ie] rated operational current | 250 A |
| [Ipk] rated peak withstand current | 32 kA |
| [Ui] rated insulation voltage | 750 V |
| [Ui] rated insulation voltage | 750 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Bredde | 138 mm |
| Dedicated enclosure type | Cubicle Floor-standing enclosure Wall-mounted enclosure |
| Distribution block name | Polybloc |
| Dybde | 63 mm |
| Electrical connection | Spring type terminals for distribution 6 x 10 + 3 x 16 mm² per phase |
| Enhedens korte navn | Polybloc |
| Fixing mode | Clipped onto a depth adjustable modular rail Directly on mounting plate |
| Højde | 105 mm |
| Installaeret udstyr | Fixed INV250 direct lateral rotary handle lodrette installation Fixed INS250 direct lateral rotary handle lodrette installation Fixed INV250 direkt front drejehåndtag Fixed INS250 direkt front drejehåndtag Fixed NSX100...250 direkt front drejehåndtag lodr |
| IP degree of protection | IPxx B |
| IP kapslingsklasse | IPxx B |
| LV panel system name | Prisma Plus System G Prisma Plus System P |
| Montagevejledning | DIN skinne Montageplade |
| Polbeskrivelse | 3P |
| Product destination | For device up to 250 A in an enclosure |
| Product or component type | 250 A Polybloc distribution block 3P |
| Productcertificeringer | ASEFA KEMA |
| Produkttype | Distributions blok |
| Range of product | Prisma Plus System G Prisma Plus System P |
| RoHS EUR conformity date | 0810 |
| RoHS EUR conformity date(YYWW) | 0810 |
| RoHS EUR status | Compliant |
| Standarder | IEC 61439-2 |
| Tilslutningsklemmer | Distribution: spring terminal (phase) , 3 x 1...16 mm² (rigid) Distribution: spring terminal (phase) , 6 x 1...10 mm² (rigid) Distribution: spring terminal (phase) , 3 x 1...16 mm² (flexible) Distribution: spring terminal (phase) , 6 x 1...10 mm² (flexibl |
Yderliger oplysninger:
