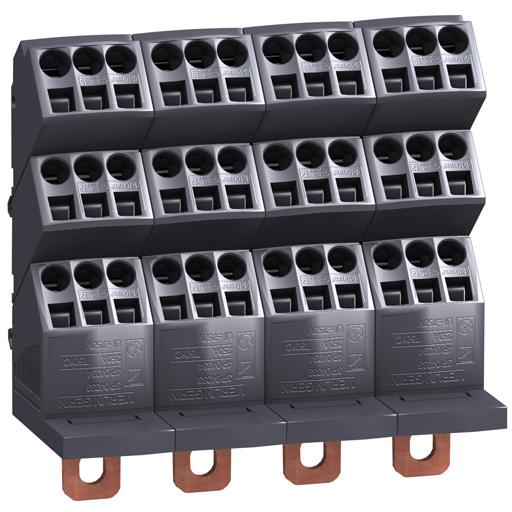

Linergy Polyblok 36 huller 250 A 4P
| Varenr: | 04034 |
| El nr: | 3322040347 |
| EAN13 nr: | 3303430040347 |
| Pakning: | 1stk |
 |
| [Ie] rated operational current | 250 A |
| [Ipk] rated peak withstand current | 32 kA |
| [Ui] rated insulation voltage | 750 V |
| [Ui] rated insulation voltage | 750 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Bredde | 138 mm |
| Dedicated enclosure type | Cubicle Floor-standing enclosure Wall-mounted enclosure |
| Distribution block name | Polybloc |
| Dybde | 63 mm |
| Electrical connection | Spring type terminals for distribution 6 x 10 + 3 x 16 mm˛ per phase |
| Enhedens korte navn | Polybloc |
| Fixing mode | Clipped onto a depth adjustable modular rail Directly on mounting plate |
| Hřjde | 140 mm |
| Installaeret udstyr | Fixed INV250 Fixed INS250 Plug-in NSX100...250 uden earth leakage protection vandret installation Fixed NSX100...250 |
| IP degree of protection | IPxx B |
| IP kapslingsklasse | IPxx B |
| LV panel system name | Prisma Plus System G Prisma Plus System P |
| Montagevejledning | DIN skinne Montageplade |
| Polbeskrivelse | 4P |
| Product destination | For device up to 250 A in an enclosure |
| Product or component type | 250 A Polybloc distribution block 4P |
| Productcertificeringer | ASEFA KEMA |
| Produkttype | Distributions blok |
| Range of product | Prisma Plus System G Prisma Plus System P |
| RoHS EUR conformity date | 0810 |
| RoHS EUR conformity date(YYWW) | 0810 |
| RoHS EUR status | Compliant |
| Standarder | IEC 61439-2 |
| Tilslutningsklemmer | Distribution: spring terminal (phase) , 3 x 1...16 mm˛ (rigid) Distribution: spring terminal (phase) , 6 x 1...10 mm˛ (rigid) Distribution: spring terminal (phase) , 3 x 1...16 mm˛ (flexible) Distribution: spring terminal (phase) , 6 x 1...10 mm˛ (flexibl |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
