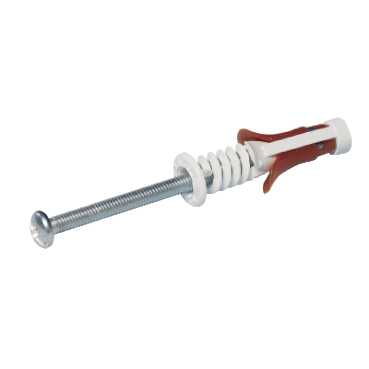

DUO-MAX TSP 6/50-25 rød
| Varenr: | 1240001 |
| El nr: | 9139128045 |
| EAN13 nr: | 7315881240005 |
| Pakning: | 100stk |
 |
| Ambient air temperature for operation | -40...80 °C |
| Borediameter | 6 mm |
| Colour tint | Red/white |
| Device application | 3...26 mm board material |
| Diameter | 11 mm |
| EAN-Code | 7315881240005 |
| Enhedens korte navn | TSP |
| Forudsat udstyr | Screw |
| Local distributor code | 9139128045 |
| Længde | 52 mm |
| Material | Spring: PA (polyamide) Collar: PA (polyamide) Screw: Stål electroplated |
| Miljøbestemte kendetegn | Corrosion resistance |
| Montagevejledning | 3...26 mm board material |
| Montagevejledning | Væg monteret |
| Pratical load capacity | Pull-out load: 90 N til 2 x 13 mm board (sikkerhedsfaktor:6) Shear: 240 N til 2 x 13 mm board (sikkerhedsfaktor:4.5) Pull-out load: 70 N til 13 mm board (sikkerhedsfaktor:6) Shear: 180 N til 13 mm board (sikkerhedsfaktor:4.5) |
| Produkttype | Cavity fixing |
| Quantity per set | Sæt af 25 |
| Range of product | Thorsman |
| Screw length | 50 mm |
| Skruediameter | 3 mm |
| Stock Code | On stock |
| Tråd type | M3 |
| Tykkelse | 0...7 mm fixture:[sapce]2 x 13 mm board 0...20 mm fixture:[sapce]13 mm board |
| Vægt | 0.0028 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
