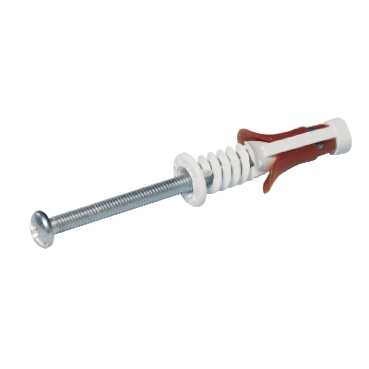

DUO-MAX TSP 6 K-25 med krog rød
| Varenr: | 1241009 |
| El nr: | 9139128058 |
| EAN13 nr: | 7315881241002 |
| Pakning: | 100stk |
 |
| Ambient air temperature for operation | -40...80 °C |
| Borediameter | 6 mm |
| Bredde | 11 mm |
| Colour tint | Red/white |
| Device application | 3...20 mm board material |
| EAN-Code | 7315881241002 |
| Enhedens korte navn | TSP |
| Local distributor code | 9139128058 |
| Længde | 60 mm |
| Material | Spring: PA (polyamide) Collar: PA (polyamide) Hook: Stål electroplated |
| Montagevejledning | 3...20 mm board material |
| Pratical load capacity | Pull-out load: 70 N til 13 mm board (sikkerhedsfaktor:6) Shear: 180 N til 13 mm board (sikkerhedsfaktor:4.5) |
| Produkttype | Cavity fixing |
| Quantity per set | Sæt af 25 |
| Range of product | Thorsman |
| REACh | Reference not containing SVHC above the threshold |
| RoHS | Compliant - siden 1002 - Schneider Electric declaration of conformity |
| Screw length | 40 mm |
| Size | Hook: 7 x 14 x 20 mm |
| Stock Code | On stock |
| Tråd type | M3 |
| Vægt | 0.004 kg |
