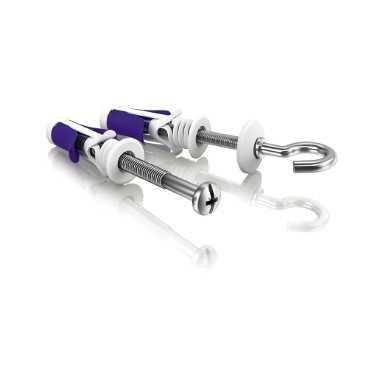

DUO-MAX TSP 10/50-25 blå
| Varenr: | 1244003 |
| El nr: | 9139128074 |
| EAN13 nr: | 7315881244003 |
| Pakning: | 100stk |
 |
| Ambient air temperature for operation | -40...80 °C |
| Borediameter | 10 mm |
| Colour tint | Blue/white |
| Device application | 3...20 mm board material |
| Diameter | 20 mm |
| EAN-Code | 7315881244003 |
| Enhedens korte navn | TSP |
| Forudsat udstyr | Screw |
| Local distributor code | 9139128074 |
| Længde | 54 mm |
| Material | Spring: PA (polyamide) Collar: PA (polyamide) Screw: Stål electroplated |
| Miljøbestemte kendetegn | Corrosion resistance |
| Montagevejledning | 3...20 mm board material |
| Montagevejledning | Væg monteret |
| Pratical load capacity | Pull-out load: 75 N til 13 mm board (sikkerhedsfaktor:6) Shear: 250 N til 13 mm board (sikkerhedsfaktor:4.5) |
| Produkttype | Cavity fixing |
| Quantity per set | Sæt af 25 |
| Range of product | Thorsman |
| REACh | Reference not containing SVHC above the threshold |
| RoHS | Compliant - siden 1002 - Schneider Electric declaration of conformity |
| Screw length | 50 mm |
| Skruediameter | 5 mm |
| Stock Code | On stock |
| Tråd type | M5 |
| Tykkelse | 0...12 mm fixture:[sapce]13 mm board |
| Vægt | 0.00896 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
