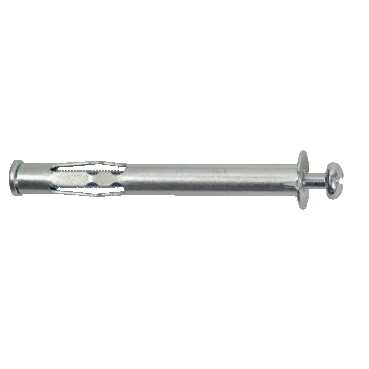

Pladefastgørelse TMX 4E-100
| Varenr: | 1260025 |
| El nr: | 9139127509 |
| EAN13 nr: | 7315881260027 |
| Pakning: | 100stk |
 |
| Ambient air temperature for operation | -40...80 °C |
| Borediameter | 8 mm |
| Colour tint | Harmaa Metal |
| Device application | 5...15 mm high load installation in board material |
| Diameter | 14 mm |
| EAN-Code | 7315881260027 |
| Enhedens korte navn | TMX |
| Forudsat udstyr | Threaded screw |
| Local distributor code | 9139127509 |
| Længde | 47 mm |
| Material | Cavity fixing: plade metal electroplated Screw: Stål electroplated |
| Miljøbestemte kendetegn | Fire resistance |
| Montagevejledning | 5...15 mm high load installation in board material |
| Montagevejledning | Væg monteret |
| Pratical load capacity | Pull-out load: 140 N (sikkerhedsfaktor:3) Shear: 200 N (sikkerhedsfaktor:2.5) |
| Produkttype | Cavity fixing |
| Quantity per set | Sæt af 100 |
| Range of product | Thorsman |
| REACh | Reference not containing SVHC above the threshold |
| RoHS | Compliant - siden 1002 - Schneider Electric declaration of conformity |
| Screw length | 40 mm |
| Skruediameter | 4 mm |
| Skruetrækkerudformning | Philips |
| Stock Code | On stock |
| Tråd type | M4 |
| Tykkelse | 0...18 mm fixture |
| Udformning af skruehoved | Cross slotted Combi-head |
| Vægt | 0.0072 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
