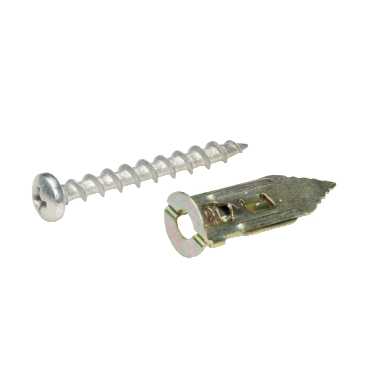

Pladefastgørelse THW 4.2x38
| Varenr: | 1260170 |
| El nr: | 9139127363 |
| EAN13 nr: | 7315881260171 |
| Pakning: | 100stk |
 |
| Ambient air temperature for operation | -40...80 °C |
| Bredde | 10 mm |
| Device application | 6...13 mm lightweight installation in board material |
| EAN-Code | 7315881260171 |
| Enhedens korte navn | THW |
| Forudsat udstyr | Screw |
| Højde | 12 mm |
| Local distributor code | 9139127363 |
| Længde | 30 mm |
| Material | Cavity fixing: Stål yellow chromated Screw: Stål electroplated |
| Miljøbestemte kendetegn | Fire resistance |
| Montagevejledning | 6...13 mm lightweight installation in board material |
| Pratical load capacity | Pull-out load: 100 N (sikkerhedsfaktor:3) Shear: 100 N (sikkerhedsfaktor:2.5) |
| Produkttype | Cavity fixing |
| Quantity per set | Sæt af 50 |
| Range of product | Thorsman |
| REACh | Reference not containing SVHC above the threshold |
| RoHS | Compliant - siden 1002 - Schneider Electric declaration of conformity |
| Screw length | 38 mm |
| Skruediameter | 4.2 mm |
| Stock Code | On stock |
| Tykkelse | 0...16 mm fixture |
| Vægt | 0.0045 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
