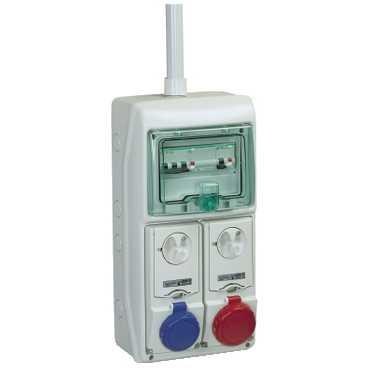

Kaedra - Kapsling 1x8 moduler 2 ċbninger 65x85 IP65
| Varenr: | 13186 |
| El nr: | 3322131861 |
| EAN13 nr: | 3303430131861 |
| Pakning: | 1stk |
 |
| Accessories included with enclosure | 1 plate for 65 x 65 or 75 x 75 power outlets 1 terminal block 8 holes 1 terminal block support 2 wiring straps |
| Ambient air temperature for operation | -25...40 °C |
| Base dimension | 103 x 225 mm |
| Colour | Enclosure :light grey ( RAL 7035 ) Door :transparent green |
| Depth | 160 mm |
| Distribution block outgoers | 4 x 16 mm² 4 x 10 mm² |
| Enclosure material | Housing: self-extinguishing polymer |
| Enclosure mounting | Surface |
| Enclosure type | Enclosure for power outlet |
| Fire resistance | 650 °C conforming to IEC 60695-2-1 |
| Height | 460 mm |
| IK degree of protection | IK09 conforming to EN 62262 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Locking options description | Optional keylock |
| Number of 18 mm modules per row | 8 |
| Number of horizontal rows | 1 |
| Number of openings of interface | 2 |
| Number of plates | 1 for 65 x 65 or 75 x 75 power outlets |
| Number of pre-cutouts PG ISO | 7 |
| Number of terminal blocks | 1 with 8 outgoers |
| Overvoltage category | II |
| Period | 18 months |
| Power dissipation in W | 15 W |
| Product or component type | Weatherproof enclosure |
| Product weight | 2 kg |
| Provided equipment | Plate for 65 x 65 or 75 x 75 power outlet for 1 Terminal block support for 1 Terminal block 8 holes for 1 Wiring strap for 2 |
| Range of product | Kaedra |
| Standards | EN 50262 EN 62262 IEC 60439-3 IEC 60529 IEC 60695-2-1 IEC 670 |
| Total number of 18 mm modules | 8 |
| Type of front cover | Transparent |
| Type of rail | DIN |
| Width | 236 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
