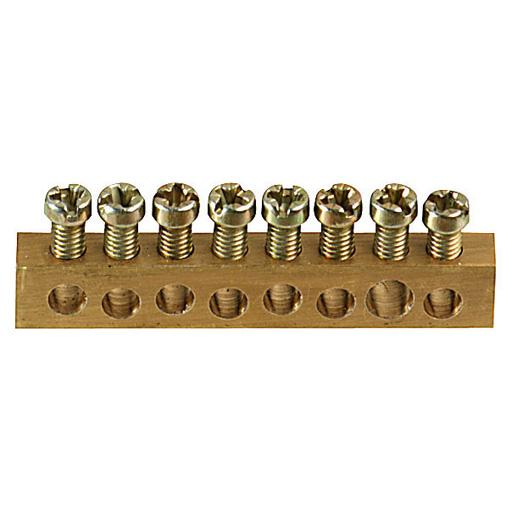

Ekstra neutral bar til distributionsterminalblok - 100 A
Varenr: 13515
Produktet findes ikke i SAP!
 |
| [Icw] rated short-time withstand current | 3.5 kA 1 s |
| [In] rated current | 100 A |
| [Ipk] rated peak withstand current | 20 kA |
| [Ui] rated insulation voltage | 500 V AC |
| Accessory / separate part category | Connection accessories |
| Busbar length | 62 mm |
| Comb busbar, distribution terminal block accessory type | Neutral bar |
| Connections - terminals | Bars |
| Distribution block outgoers | 4 x 7 holes |
| Electrical connection | Cable 6...16 mm˛ semi-rigid 8.5 mm |
| Fixing mode | Screwed |
| Kit composition | Cover Insulating back Open screws |
| Mounting support | 35 mm symmetrical DIN rail Multifix rail |
| Poles description | 1N |
| Pollution degree | 3 |
| Product compatibility | Pragma C12 modular enclosures Pragma D18 modular enclosures Pragma F24 modular enclosures Prisma functional enclosures All enclosures |
| Range of product | Canalis KV PrismaG Prisma GX Prisma P Prisma PH |
| Standards | EN 60947-7-1 |
Yderliger oplysninger:
