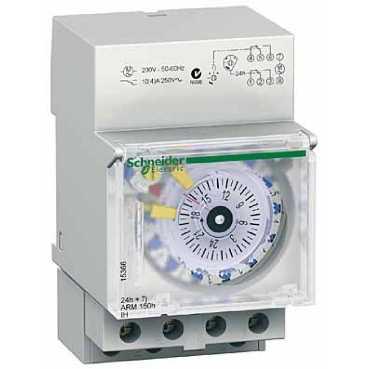

Acti 9 - Kontaktur IH mekanisk 24 timer+7 dage - 150 timer hukommelse 16 A 1CO
| Varenr: | 15366 |
| El nr: | 3323153660 |
| EAN13 nr: | 3303430153665 |
| Pakning: | 1stk |
 |
| [Ue] rated operational voltage | ( - 15...10 % ) 230 V AC 50 Hz |
| 9 mm pitches | 6 |
| Ambient air temperature for operation | -20...55 °C |
| Backup time | 150 h time and program saving |
| Battery life | 6 yr |
| Colour tint | White(RAL 9003) |
| Connections - terminals | Screw terminals |
| Cycle duration | 24 hours + 7 days |
| Depth | 66 mm |
| Device application | Building |
| Device short name | IH 24 h +7j 1+1c ARM |
| Function available | Manual time changeover |
| Height | 82 mm |
| IP degree of protection | IP20 B |
| IP degree of protection | Terminals : IP20 B |
| Load type | 6 serial-corrected fluorescent tube, balast : conventional, ( 100 W ) 6 non-corrected fluorescent tube, balast : conventional, ( 100 W ) 5 dual mounted fluorescent tube, balast : conventional, ( 2 x 58 W ) 3 dual mounted fluorescent tube, balast : convent |
| Maximum number of switchings | 16 on - 16 off + 7 on - 7 off |
| Maximum switching current | 4 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1 |
| Measurement accuracy | +/- 1 s/day |
| Measurement accuracy | +/- 1 s/day 20 °C |
| Minimum interval duration | 45 min + 12 h |
| Mounting support | DIN rail |
| Number of channels | 2 |
| Power consumption | 2.5 VA |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product or component type | Mechanical time switch |
| Product weight | 0.223 kg |
| Range of product | Acti 9 |
| Sustainable offer status | Green Premium product |
| Type of setting | Manual time changeover |
| Width | 54 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
