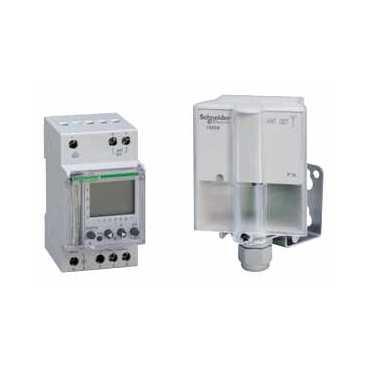

Acti 9 - IHP DCF - 1C digital tidskontakt - 24 timer + 7 dage
| Varenr: | 15857 |
| El nr: | 3323158571 |
| EAN13 nr: | 3303430158578 |
| Pakning: | 1stk |
 |
| [Ue] rated operational voltage | 230 V ( +/- 10 % ) AC 50/60 Hz |
| 9 mm pitches | 5 |
| Accuracy | 1 s/million year |
| Ambient air temperature for operation | -10...50 °C |
| Backup time | 4 years time and program saving |
| Battery life | 12 yr |
| Battery type | Lithium |
| Colour tint | White (RAL 9003) |
| Cycle duration | 24 hours + 7 days |
| Depth | 66 mm |
| Device application | Building |
| Device short name | IHP DCF 1c |
| Display type | Backlit LCD |
| Function available | Automatic winter/summer time changeover Time synchronisation via antenna possible |
| Height | 82 mm |
| IP degree of protection | IP20 B |
| Maximum number of switchings | 42 |
| Maximum switching current | 16 A - 250 V AC pf = 1 10 A - 250 V AC pf = 0.6 |
| Minimum interval duration | 1 s |
| Modular device name | IHP DCF |
| Number of channels | 1 |
| Power consumption | 2 VA |
| Product end of life instructions | Available Download End of life manual |
| Product environmental profile | Available Download Product environmental |
| Product mounting | DIN rail |
| Product or component type | Programmable digital time switch |
| Product weight | 0.244 kg |
| Range of product | Acti 9 |
| Sustainable offer status | Green Premium product |
| Type of setting | Absence for holidays function Random function |
| Width | 45 mm |
