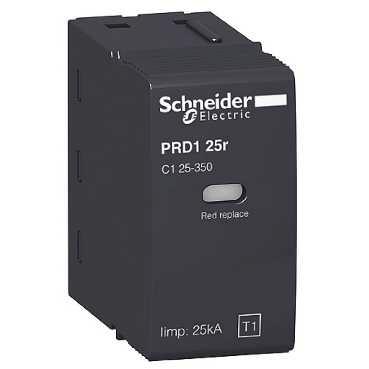

Reservekassette C1 25-350
| Varenr: | 16315 |
| El nr: | 3368163152 |
| EAN13 nr: | 3606480060366 |
| Pakning: | 1stk |
 |
| [If] follow current | 25 kA |
| [Iimp] impulse current | 25 kA 25 kA 12.5 A s |
| [Uc] maximum continuous operating voltage | 350 V |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| [Up] voltage protection level | 1.5 kV type 1 |
| Ambient air temperature for operation | -25...60 °C |
| Ambient air temperature for storage | -40...80 °C |
| Antal moduler á 9 mm | 2,5 |
| Bredde | 23 mm |
| Driftshøjde | 0...2000 m |
| Dybde | 57 mm |
| Enhedens korte navn | C1 25-350 |
| Farve | Antrasit grå ( RAL 7016 ) |
| Højde | 50 mm |
| IP kapslingsklasse | Fronten: 18-22 |
| Lokal indikering | Flag color: Hvid/rød |
| Material | PBT (polybutylene terephthalate) |
| Montage | Plug-in |
| Montagevejledning | Into SPD module |
| Nominel afledestrøm | 25 kA |
| Overspændingsafleder teknologi | Spark gap |
| Overspændingsaflederklasse | Type 1 |
| Overspændingsafledertype | Electrical distribution network |
| Productcertificeringer | KEMA-KEUR |
| Produkttype | Cartridge |
| Range of product | PRD1 |
| Reaktionstid | < 100 ns |
| Relativ fugtighed | 5...90 % |
| RoHS EUR conformity date(YYWW) | 0902 |
| RoHS EUR status | Compliant |
| Standarder | EN 61643-11 IEC 61643-1 |
| Systemjording | TN TT |
Yderliger oplysninger:
