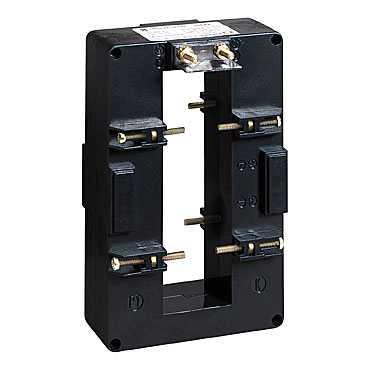

Strømtransformer TI 4000/5 A - til lige kanalskinne 52 x 127 mm
| Varenr: | 16547 |
| El nr: | 3398165476 |
| EAN13 nr: | 3303430165477 |
| Pakning: | 1stk |
 |
| [In] rated current | 4000 A |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| Bredde | 52 mm inner 125 mm outside |
| Climatic withstand | Operating temperature (RH > 95 %) : - 25...60 °C |
| Dybde | 87 mm outside |
| Forsejling | Med |
| Højde | 160 mm outside 127 mm inner |
| IP kapslingsklasse | 18-22 |
| Montage | Insulated locking screw |
| Montagevejledning | Skinne |
| Nøjagtighedklasse | Accuracy klasse 3rated power: 60 VA Accuracy klasse 1rated power: 60 VA Accuracy klasse 0.5rated power: 50 VA |
| Opening of bars | 127 x 52 |
| Produkttype | Strøm transformer |
| Range of product | PowerLogic CT |
| RoHS EUR conformity date(YYWW) | 0610 |
| RoHS EUR status | Compliant |
| Sedundærstrøm | 5 A |
| Sikkerhedsfaktor | <= 5 |
| Standarder | IEC 60044-1 VDE 0414 |
| Strømtransformers omsærningsforhold | 4000/5 |
| Strømtransformertype | Tropicalised for busbar |
| Vægt | 1.3 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
