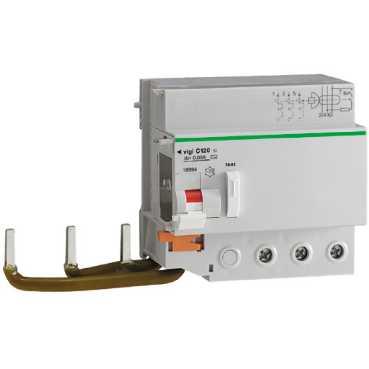

Fejlstrømsafbryder C120 Vigi C120 - 3 poler - 125 A - 300mA
| Varenr: | 18584 |
| El nr: | 3322185846 |
| EAN13 nr: | 3303430185840 |
| Pakning: | 1stk |
 |
| [In] rated current | 125 A |
| [Ue] rated operational voltage | 230...415 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Ambient air temperature for operation | -25...40 °C |
| Ambient air temperature for storage | -40...70 °C |
| Antal moduler á 9 mm | 10 |
| Bredde | 171 mm |
| Driftshøjde | 2000 m |
| Dybde | 73 mm |
| Earth-leakage protection time delay | Selektiv |
| Earth-leakage sensitivity | 300 mA |
| Electrical connection to mcb | By screws |
| Electromagnetisk kompatibilitet | 8/20 µs impulse withstand 3000 A conforming to IEC 60947-2 |
| Enhedens korte navn | Vigi C120 |
| Farve | Harmaa |
| Fastbindingslængde for ledning | 15 mm |
| Forureningsgrad | 3 conforming to IEC 60947-2 |
| Følsomhedsklasse | Klasse A |
| Højde | 87 mm |
| IP kapslingsklasse | 18-22 |
| Kompatibilitet | Single terminal |
| Mekanisk holdbarhed | 20000 cycles |
| Montagevejledning | 35 mm symmetrical DIN rail |
| Netfrekvens | 50/60 Hz |
| Placering af enheden i systemet | Udegående |
| Polbeskrivelse | 3P |
| Produkttype | Earth leakage add-on block |
| Range of product | C120 |
| Relativ fugtighed | 95 % ( 55 °C ) |
| Residual current tripping technology | Voltage independent |
| Standarder | EN 61009 IEC 60947-2 |
| Tilslutningsklemmer | Tunnel type terminaler 1.5...50 mm² siv Tunnel type terminaler 1...35 mm² fleksibel |
| Tilspændingsmoment | 3.5 N.m |
| Tropetilpasning | 2 conforming to EN 61009 |
| Type | AC |
| Vægt | 0.5 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
