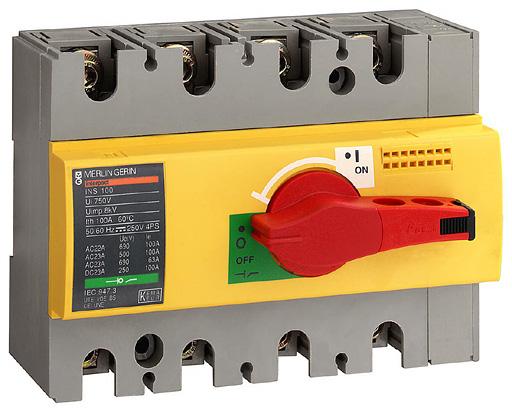

| [Icm] rated short-circuit making capacity | 20 kA 690 V AC 50/60 Hz switch-disconnector alone 154 kA 690 V AC 50/60 Hz with upstream protection circuit breaker |
| [Icw] rated short-time withstand current | 0.01 kA ( 30 s ) conforming to IEC 60947-3 0.05 kA ( 1 s ) conforming to IEC 60947-3 1.23 kA ( 20 s ) conforming to IEC 60947-3 3.175 kA ( 3 s ) conforming to IEC 60947-3 |
| [Icw] rated short-time withstand current | 5.5 kA ( 1 s ) conforming to IEC 60947-3 3.175 kA ( 3 s ) conforming to IEC 60947-3 1.23 kA ( 20 s ) conforming to IEC 60947-3 0.01 kA ( 30 s ) conforming to IEC 60947-3 |
| [Ie] rated operational current | AC-22A: 125 A AC 50/60 Hz 220/240 V AC-22A: 125 A AC 50/60 Hz 380/415 V AC-22A: 125 A AC 50/60 Hz 440/480 V AC-22A: 125 A AC 50/60 Hz 500 V AC-22A: 125 A AC 50/60 Hz 660/690 V AC-22A: 125 A AC 50/60 Hz 480 V NEMA AC-23A: 125 A AC 50/60 Hz 220/240 V AC-23A |
| [Ie] rated operational current | DC-23A: 125 A DC 250 V 4 poles in series DC-23A: 125 A DC 125 V 2 poles in series DC-22A: 125 A DC 250 V 4 poles in series DC-22A: 125 A DC 125 V 2 poles in series AC-23A: 80 A AC 50/60 Hz 660/690 V AC-23A: 125 A AC 50/60 Hz 500 V AC-23A: 125 A AC 50/60 H |
| [Ith] conventional free air thermal current | 125 A ( 60 °C ) |
| [Ue] rated operational voltage | 250 V DC |
| [Ue] rated operational voltage | 250 V DC 690 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -50...85 °C |
| Anvendelse | Uafbrudt |
| Betjening | Drejehåndtag |
| Bredde | 135 mm |
| Connection pitch | 30 mm |
| Contact position indicator | Ja |
| Contact position indicator | Yes |
| Control type | Red rotary handle |
| Depth | 62.5 mm |
| Device short name | Interpact INS125 |
| Downside connection | Front |
| Dybde | 62.5 mm |
| Egnet for adskillelse | Ja |
| Electrical durability | AC-22A: 1500 cycles 220/240 V AC 50/60 Hz AC-22A: 1500 cycles 380/415 V AC 50/60 Hz AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 220/240 V AC 50/60 Hz AC-23A: 1500 cy |
| Elektrisk holdbarhed | DC-23A: 1500 cycles 250 V DC 4 poles in series DC-22A: 1500 cycles 250 V DC 4 poles in series AC-23A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 380/415 V AC 50/60 Hz AC-23 |
| Enclosure dimensions for Ithe | 260 mm x 160 mm x 55 mm |
| Enhedens korte navn | Compact INS125 |
| Forureningsgrad | 3 |
| Grebets farve | Rød |
| Height | 100 mm |
| Højde | 100 mm |
| IK degree of protection | IK07 conforming to EN 50102 |
| IK kapslingsklasse | IK07 conforming to EN 50102 |
| Intermittedere driftsklasse | Klasse 120 - 60 % |
| Intermittent duty class | Class 120 - 60 % |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IP kapslingsklasse | 22-26 conforming to IEC 60529 |
| Kapslingsstørrelse ved Ithe | 260 mm x 160 mm x 55 mm |
| Lastadskillernavn | Compact INS125 |
| Maximum power | AC-23: 55 kW 440 V AC 50/60 Hz AC-23: 75 kW 500/525 V AC 50/60 Hz AC-23: 75 kW 660/690 V AC 50/60 Hz AC-23: 75 kW 480 V NEMA AC 50/60 Hz AC-23: 37 kW 230 V NEMA AC 50/60 Hz AC-23: 37 kW 220/240 V AC 50/60 Hz AC-23: 55 kW 380/415 V AC 50/60 Hz |
| Maximum power | AC-23: 660/690 V AC 50/60 Hz AC-23: 500/525 V AC 50/60 Hz AC-23: 480 V Nema AC 50/60 Hz AC-23: 440 V AC 50/60 Hz AC-23: 380/415 V AC 50/60 Hz AC-23: 230 V Nema AC 50/60 Hz AC-23: 220/240 V AC 50/60 Hz |
| Mechanical durability | 15000 cycles |
| Mekanisk holdbarhed | 15000 cycles |
| Montage | Fixed |
| Montagevejledning | DIN skinne Plade |
| Mounting mode | Fixed |
| Mounting support | DIN rail Plate |
| Netfrekvens | 50/60 Hz |
| Network frequency | 50/60 Hz |
| Network type | AC DC |
| Polbeskrivelse | 4P |
| Poles description | 4P |
| Pollution degree | 3 |
| Product certifications | CCC KEMA-KEUR |
| Product weight | 0.9 kg |
| Productcertificeringer | CCC KEMA-KEUR |
| Range of product | INS40...160 |
| Rated duty | Uninterrupted |
| RoHS EUR conformity date | 0811 |
| RoHS EUR status | Compliant |
| Standarder | IEC 60947-1 IEC 60947-3 |
| Standards | IEC 60947-1 IEC 60947-3 |
| Suitability for isolation | Yes |
| Switch-disconnector name | Interpact INS125 |
| Synlig pause | No |
| Tilslutning i bund | Front |
| Tilslutninger i top | Front |
| Tilslutningsafstand | 30 mm |
| Type | AC DC |
| Upside connection | Front |
| Visible break | No |
| Vægt | 0.9 kg |
| Width | 135 mm |
