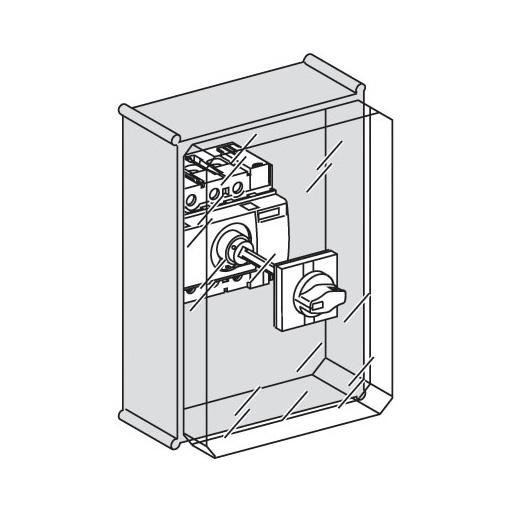

Vandtæt skab - rødt håndtag - plastik
| Varenr: | 28968 |
| El nr: | 3319289687 |
| EAN13 nr: | 3303430289685 |
| Pakning: | 1stk |
 |
| Betjening | Udvidelse roterende bevægelse |
| Bredde | 270 mm |
| Control type | Extended rotary handle |
| Depth | 185 mm |
| Device short name | Insulated enclosure |
| Dybde | 185 mm |
| Enclosure material | Polyester |
| Enclosure mounting | Surface |
| Enclosure type | Individual enclosure |
| Enhedens korte navn | Insulated enclosure |
| Height | 180 mm |
| Højde | 180 mm |
| IK degree of protection | IK08 |
| IK kapslingsklasse | IK08 |
| Installaeret udstyr | INS100 INS125 INS160 INS40 INS63 INS80 |
| Installed device | INS100 INS125 INS160 INS40 INS63 INS80 |
| IP degree of protection | IP55 |
| IP kapslingsklasse | IP55 |
| Kapslingsmontage | Overflade |
| Kapslingstype | Individuel kapsling |
| Kasplingsmateriale | Polyester |
| Range of product | INS40...160 |
| RoHS EUR status | Will not be compliant |
| Type of front cover | Transparent |
| Width | 270 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
