| [Icm] rated short-circuit making capacity | 50 kA 690 V AC 50/60 Hz switch-disconnector alone 330 kA 690 V AC 50/60 Hz with upstream protection circuit breaker |
| [Icw] rated short-time withstand current | 4 kA ( 30 s ) conforming to IEC 60947-3 4.9 kA ( 20 s ) conforming to IEC 60947-3 11.5 kA ( 3 s ) conforming to IEC 60947-3 20 kA ( 1 s ) conforming to IEC 60947-3 |
| [Icw] rated short-time withstand current | 4.9 kA ( 20 s ) conforming to IEC 60947-3 4 kA ( 30 s ) conforming to IEC 60947-3 20 kA ( 1 s ) conforming to IEC 60947-3 11.5 kA ( 3 s ) conforming to IEC 60947-3 |
| [Ie] rated operational current | AC-22A: 320 A AC 50/60 Hz 660/690 V AC-22A: 320 A AC 50/60 Hz 480 V NEMA AC-22A: 320 A AC 50/60 Hz 220/240 V AC-22A: 320 A AC 50/60 Hz 380/415 V AC-22A: 320 A AC 50/60 Hz 440/480 V AC-22A: 320 A AC 50/60 Hz 500/525 V AC-23A: 320 A AC 50/60 Hz 500/525 V AC |
| [Ie] rated operational current | DC-23A: 320 A DC 250 V 4 poles in series DC-23A: 320 A DC 125 V 2 poles in series DC-22A: 320 A DC 250 V 4 poles in series DC-22A: 320 A DC 125 V 2 poles in series AC-23A: 320 A AC 50/60 Hz 660/690 V AC-23A: 320 A AC 50/60 Hz 500/525 V AC-23A: 320 A AC 50 |
| [Ith] conventional free air thermal current | 320 A ( 60 °C ) |
| [Ue] rated operational voltage | 250 V DC 690 V AC 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz 250 V DC |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV 8 kV conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 8 kV |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -50...85 °C |
| Anvendelse | Uafbrudt |
| Betjening | Rød og gul dreje håndtag |
| Bredde | 185 mm |
| Connection pitch | 45 mm |
| Contact position indicator | Ja |
| Contact position indicator | Yes |
| Depth | 130 mm |

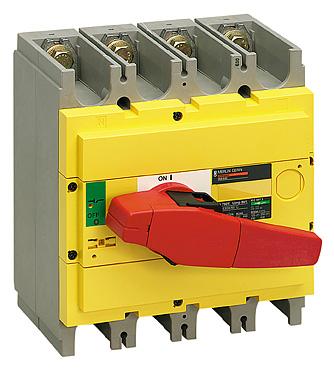

| Device short name | Interpact INS320 |
| Downside connection | Front |
| Dybde | 130 mm |
| Egnet for adskillelse | Ja |
| Enhedens korte navn | Interpact INS320 |
| Forureningsgrad | 3 |
| Grebets farve | Rød |
| Height | 205 mm |
| Højde | 205 mm |
| IK degree of protection | IK07 conforming to EN 50102 |
| IK kapslingsklasse | IK07 conforming to EN 50102 |
| Electrical durability | AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 690 V AC 50/60 Hz DC-23A: 1000 cycles 250 V D |
| Elektrisk holdbarhed | DC-23A: 1000 cycles 250 V DC AC-23A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-22A: 1500 cycles 440 V AC 50/60 H |
| Lastadskillernavn | Interpact INS320 |
| Maximum power | AC-23: 90 kW 220/240 V AC 50/60 Hz AC-23: 90 kW 230 V NEMA AC 50/60 Hz AC-23: 160 kW 380/415 V AC 50/60 Hz AC-23: 185 kW 440 V AC 50/60 Hz AC-23: 185 kW 480 V NEMA AC 50/60 Hz AC-23: 220 kW 500/525 V AC 50/60 Hz AC-23: 250 kW 660/690 V AC 50/60 Hz |
| Maximum power | AC-23: 90 KW 230 V Nema AC 50/60 Hz AC-23: 90 KW 220/240 V AC 50/60 Hz AC-23: 250 KW 660/690 V AC 50/60 Hz AC-23: 220 KW 500/525 V AC 50/60 Hz AC-23: 185 KW 480 V Nema AC 50/60 Hz AC-23: 185 KW 440 V AC 50/60 Hz AC-23: 160 KW 380/415 V AC 50/60 Hz |
| Mechanical durability | 10000 cycles |
| Mekanisk holdbarhed | 10000 cycles |
| Montage | Fixed |
| Montagevejledning | Plade Skinne |
| Mounting mode | Fixed |
| Mounting support | Plate Rail |
| Netfrekvens | 50/60 Hz |
| Network frequency | 50/60 Hz |
| Network type | AC |
| Polbeskrivelse | 4P |
| Poles description | 4P |
| Pollution degree | 3 |
| Product certifications | CCC KEMA-KEUR |
| Product weight | 4.9 kg |
| Productcertificeringer | CCC KEMA-KEUR |
| Range of product | INS320...630 |
| Rated duty | Uninterrupted |
| RoHS EUR conformity date | 0826 |
| RoHS EUR status | Compliant |
| Standarder | IEC 60947-1 IEC 60947-3 |
| Standards | IEC 60947-1 IEC 60947-3 |
| Suitability for isolation | Yes |
| Switch-disconnector name | Interpact INS320 |
| Synlig pause | No |
| Tilslutning i bund | Front |
| Tilslutninger i top | Front |
| Tilslutningsafstand | 45 mm |
| Type | AC |
| Upside connection | Front |
| Visible break | No |
| Vægt | 4.9 kg |
| Width | 185 mm |
