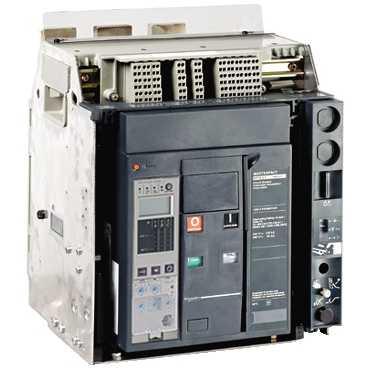

Lastafbryder Masterpact NT08HF 800 A 600V fast 3 polet
| Varenr: | 34039 |
| El nr: | 3322340393 |
| EAN13 nr: | 3303430340393 |
| Pakning: | 1stk |
 |
| [Icw] rated short-time withstand current | 65 kA 220 V 50 kA 600 V 50 kA 480 V |
| [Ie] rated operational current | 800 A |
| [Ue] rated operational voltage | 240...600 V AC 50/60 Hz |
| Arbejdsforhold | 3 cyc/mn |
| Betjening | Tryknap |
| Breaking capacity code | HF |
| Bredde | 276 mm |
| Dybde | 196 mm |
| Elektrisk holdbarhed | 2800 cycles without maintenance |
| Enhedens korte navn | Masterpact NT08 |
| Højde | 301 mm |
| Integral instant protection | 40 kA |
| IP kapslingsklasse | IP30 |
| Lastadskillernavn | Masterpact NT08 |
| Mekanisk holdbarhed | 12500 cycles without maintenance |
| Montage | Fixed |
| Netfrekvens | 50/60 Hz |
| Polbeskrivelse | 3P |
| Range of product | Masterpact NT |
| Standarder | UL 489 |
| Tilslutningsafstand | 70 mm |
| Type | AC |
| Vægt | 14 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
