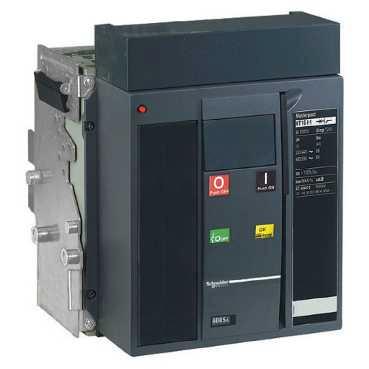

Masterpact lastadskiller NT06HA 3P Drawout
| Varenr: | 47248 |
| El nr: | 3322472481 |
| EAN13 nr: | 3303430472483 |
| Pakning: | 1stk |
 |
| [Icm] rated short-circuit making capacity | 75 kA 220...690 V AC 50/60 Hz |
| [Icw] rated short-time withstand current | 36 kA ( 1 s ) conforming to IEC 60947-3 36 kA ( 0.5 s ) conforming to IEC 60947-3 20 kA ( 3 s ) conforming to IEC 60947-3 |
| [Ie] rated operational current | 630 A AC 50/60 Hz 690 V |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-3 |
| Ambient air temperature for operation | -5...70 °C |
| Ambient air temperature for storage | -40...85 °C |
| Arbejdsforhold | 3 cyc/mn |
| Betjening | Tryknap |
| Breaking capacity code | HA |
| Bredde | 276 mm |
| Contact position indicator | Ja |
| Dybde | 196 mm |
| Egnet for adskillelse | Ja conforming to IEC 60947-3 |
| Elektrisk holdbarhed | AC-3: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 AC-23A: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 AC-23A: 3000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 |
| Enhedens korte navn | Masterpact NT06 |
| Forureningsgrad | 3 conforming to IEC 60664-1 |
| Højde | 301 mm |
| Lastadskillernavn | Masterpact NT06 |
| Mekanisk holdbarhed | 12500 cycles without maintenance conforming to IEC 60947-3 |
| Montage | Drawout |
| Montagevejledning | Chassis |
| Netfrekvens | 50/60 Hz |
| Polbeskrivelse | 3P |
| Productcertificeringer | ASEFA LCIE |
| Range of product | Masterpact NT |
| Standarder | IEC 60947-3 |
| Synlig pause | No |
| Tilslutning i bund | Front |
| Tilslutninger i top | Front |
| Tilslutningsafstand | 70 mm |
| Type | AC |
| Vægt | 14 kg |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
