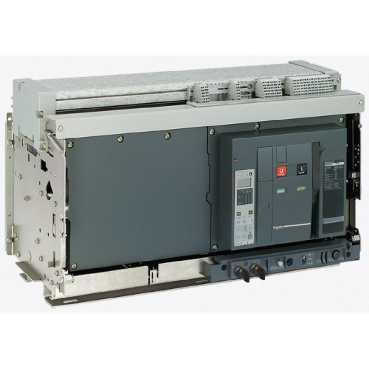

Lastadskiller NW40bHA 4P Dr-out
| Varenr: | 48341 |
| El nr: | 3322483412 |
| EAN13 nr: | 3303430483410 |
| Pakning: | 1stk |
 |
| [Icm] rated short-circuit making capacity | 187 kA 220...690 V AC 50/60 Hz |
| [Icw] rated short-time withstand current | 85 kA ( 3 s ) conforming to IEC 60947-3 85 kA ( 1 s ) conforming to IEC 60947-3 |
| [Ie] rated operational current | 4000 A AC 50/60 Hz 690 V |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-3 |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -35...85 °C |
| Arbejdsforhold | 3 cyc/mn |
| Betjening | Tryknap |
| Breaking capacity code | HA |
| Bredde | 997 mm |
| Contact position indicator | Ja |
| Dybde | 297 mm |
| Egnet for adskillelse | Ja conforming to IEC 60947-3 |
| Elektrisk holdbarhed | AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 AC-23A: 1500 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 AC-23A: 1500 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 |
| Enhedens korte navn | Masterpact NW40b |
| Forureningsgrad | 4 conforming to IEC 60664-1 |
| Højde | 352 mm |
| Lastadskillernavn | Masterpact NW40b |
| Mekanisk holdbarhed | 5000 cycles without maintenance conforming to IEC 60947-3 10000 cycles with maintenance conforming to IEC 60947-3 |
| Montage | Drawout |
| Montagevejledning | Chassis |
| Netfrekvens | 50/60 Hz |
| Polbeskrivelse | 4P |
| Productcertificeringer | ASEFA ASTA |
| Range of product | Masterpact NW |
| Standarder | IEC 60947-3 |
| Synlig pause | No |
| Tilslutningsafstand | 230 mm |
| Type | AC |
| Vægt | 160 kg |
Yderliger oplysninger:
