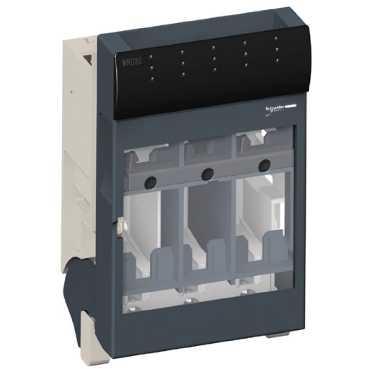

Sikringadskiller ISFT 100 A DIN NH000 3 poleter fast
| Varenr: | 49800 |
| El nr: | 3322498009 |
| EAN13 nr: | 3303430498001 |
| Pakning: | 1stk |
 |
| [Ie] rated operational current | DC-21B: 100 A DC 440 V 1 pole DC-21B: 100 A DC 220 V 1 pole DC-21B: 100 A DC 125 V 1 pole AC-22B: 160 A AC 50/60 Hz 380/415 V AC-22B: 160 A AC 50/60 Hz 220/240 V AC-21B: 160 A AC 50/60 Hz 380/415 V AC-21B: 160 A AC 50/60 Hz 220/240 V AC-21B: 100 A AC 50/6 |
| [Ith] conventional free air thermal current | 95 A ( 45 °C ) vertical 95 A ( 45 °C ) vandret 90 A ( 50 °C ) lodrette 90 A ( 50 °C ) vandret 85 A ( 55 °C ) vertical 85 A ( 55 °C ) vandret 80 A ( 60 °C ) lodrette 80 A ( 60 °C ) vandret 75 A ( 65 °C ) vertical 75 A ( 65 °C ) vandret 70 A ( 70 °C ) lodre |
| [Ithe] conventional enclosed thermal current | 100 A ( 40 °C ) / Power dissipation per fuse: 9 W 160 A ( 40 °C ) / Power dissipation per fuse: 9 W |
| [Ue] rated operational voltage | DC DC-20 AC 50/60 Hz AC-20 AC 50/60 Hz DC |
| [Ui] rated insulation voltage | 690 V DC 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -50...85 °C |
| Anvendelse | Uafbrudt |
| Beregnet for hængelåse | 3 hængelåse |
| Betjening | Fuse carriers handle |
| Bredde | 89 mm |
| Dybde | 71 mm |
| Egnet for adskillelse | Ja |
| Elektrisk holdbarhed | AC-22B: 300 cycles 415 v AC 50/60 Hz AC-21B: 300 cycles 690 V AC 50/60 Hz |
| Forureningsgrad | 3 conforming to IEC 60947 |
| Højde | 141 mm |
| IK kapslingsklasse | IK07 conforming to EN 50102 |
| IP kapslingsklasse | 18-22 conforming to IEC 60529 |
| Mekanisk holdbarhed | 2000 cycles |
| Montagested | Side ved side |
| Montagevejledning | DIN skinne Montageplade |
| Netfrekvens | 50/60 Hz |
| Polbeskrivelse | 3P |
| Productcertificeringer | KEMA-KEUR |
| Protected poles description | 3f |
| Range of product | ISFT100 |
| Rated making and breaking capacity | Icn 80 kA 415 v Icn 50 kA 690 V Icn 50 kA 500 V Icm 176 kA 415 v Icm 105 kA 690 V Icm 105 kA 500 V |
| Sikringsafbrydernavn | ISFT100 |
| Sikringsstørrelse | NH000 |
| Sikringstype | DIN |
| Standarder | EN/IEC 60947-1 EN/IEC 60947-3 IEC 60269-2-1 |
| Synlig pause | Ja |
| Tilslutningsklemmer | Cable connectors 160 A cable 95 mm² Bare cable connectors 100 A cable 1.5...50 mm² |
| Tilspændingsmoment | Terminal: 3 N.m |
| Type | AC DC |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
