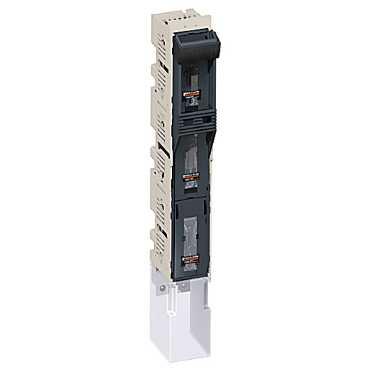

Sikringadskiller ISFL 400 A DIN NH 3 poler fast

Varenr:	49844
El nr:	3318498440
EAN13 nr:	3303430498445
Pakning:	1stk


[Ie] rated operational current	AC-22B: 400 A AC 50/60 Hz 380/415 V AC-22B: 400 A AC 50/60 Hz 220/240 V AC-21B: 400 A AC 50/60 Hz 660/690 V AC-21B: 400 A AC 50/60 Hz 500 V AC-21B: 400 A AC 50/60 Hz 440/480 V AC-21B: 400 A AC 50/60 Hz 380/415 V AC-21B: 400 A AC 50/60 Hz 220/240 V
[Ith] conventional free air thermal current	400 A ( 40 °C ) lodrette 400 A ( 40 °C ) power dissipation per fuse: 34 W 380 A ( 45 °C ) lodrette 360 A ( 50 °C ) lodrette 340 A ( 55 °C ) lodrette 320 A ( 60 °C ) lodrette 300 A ( 65 °C ) lodrette 280 A ( 70 °C ) lodrette
[Ithe] conventional enclosed thermal current	400 A ( 40 °C ) / Power dissipation per fuse: 34 W
[Ue] rated operational voltage	800 V DC DC-20 800 V AC 50/60 Hz AC-20 690 V AC 50/60 Hz 440 V DC
[Ui] rated insulation voltage	800 V DC 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-50...85 °C
Anvendelse	Uafbrudt
Betjening	Fuse carriers handle
Bredde	100 mm
Dybde	192 mm
Egnet for adskillelse	Ja
Elektrisk holdbarhed	AC-22B: 200 cycles 415 v AC 50/60 Hz AC-21B: 200 cycles 690 V AC 50/60 Hz
Forureningsgrad	3 conforming to IEC 60947
Højde	755 mm
IK kapslingsklasse	IK07 conforming to EN 50102
IP kapslingsklasse	18-22 conforming to IEC 60529
Mekanisk holdbarhed	1000 cycles
Montagevejledning	Skinner
Netfrekvens	50/60 Hz
Polbeskrivelse	3P
Productcertificeringer	KEMA-KEUR
Produkttype	Separated fuse monitor
Protected poles description	3f
Range of product	ISFL250...630
Rated making and breaking capacity	Icn 50 A 690 V Icn 50 A 500 V Icn 50 A 415 v Icm 105 A 690 V Icm 105 A 500 V Icm 105 A 415 v
Sikringsafbrydernavn	ISFL400
Sikringsstørrelse	NH2
Sikringstype	DIN
Standarder	EN/IEC 60947-1 EN/IEC 60947-3 IEC 60269-2-1
Synlig pause	Ja
Tilspændingsmoment	40 N.m
Type	AC DC

Yderliger oplysninger: Se venligst SE katalog
