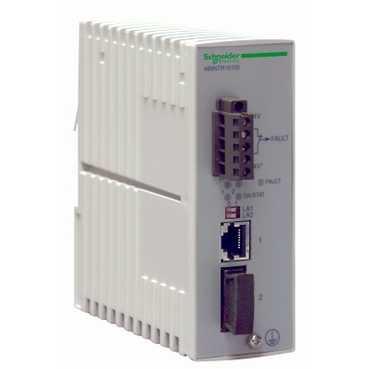

Ethernet TCP/IP transceiver - ConneXium -1 port 100BASE-T
| Varenr: | 499NTR10100 |
| El nr: | 7586005137 |
| EAN13 nr: | 3595862048378 |
| Pakning: | 1stk |
 |
| [Us] rated supply voltage | 24 V |
| Alarm function | Power supply fault Switch fault Data link status |
| Alarm output | 1 voltfree contact <= 1 A |
| Ambient air temperature for operation | 0...60 °C |
| Attenuation | 8 dB 50/125 µm 11 dB 62.2/125 µm |
| Cable length | 100 m copper cable |
| Communication port protocol | Ethernet TCP/IP |
| Concept | Transparent Ready |
| Current consumption | 160...190 mA 24 V DC |
| Depth | 111 mm |
| Electrical connection | Removable connector 5 ways power supply |
| Ethernet cabling system | TF tranceivers |
| Height | 135 mm |
| Integrated connection type | Shielded RJ45 copper cable SC fiber optic |
| IP degree of protection | IP30 |
| Local signalling | 1 LED recieve or send data (COM) 1 LED link status 1 LED fault 2 LEDs P1 P2 power supplies |
| Marking | CE |
| Mounting support | 35 mm symmetrical DIN rail |
| Optic fiber length | 62.2/125 µm 50/125 µm |
| Port Ethernet | 100BASE-TX - 1 port(s) copper cable 100BASE-FX - 1 port(s) fiber optic |
| Power consumption | 4.5 W |
| Product certifications | GL |
| Product or component type | Ethernet TCP/IP transceiver |
| Product weight | 0.23 kg |
| Range of product | ConneXium |
| Redundancy | P1 and P2 redundant power supplies |
| Relative humidity | 10...95 % without condensation |
| RoHS | Compliant - since 0622 - Schneider Electric declaration of conformity |
| Standards | CSA C22.2 No 142 CUL 60950 UL 1604 Class 1 Division 2 UL 508 ATEX 100a - EEx nL IIC T4 CSA C22.2 No 213 Class I Division 2 |
| Supply voltage limits | 9...56 V DC SELV |
| Sustainable offer status | Not Green Premium product |
| Transmission support medium | Multimode optical fiber for fiber optic Twisted shielded pairs cable CAT 5E for copper cable |
| Width | 47 mm |
