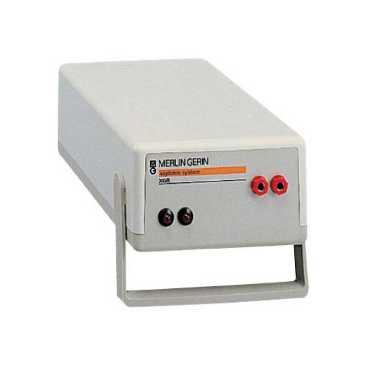

Signalgenerator XGR 220-240 V AC
| Varenr: | 50282 |
| El nr: | 3322502827 |
| EAN13 nr: | 3303430502821 |
| Pakning: | 1stk |
 |
| Auxiliary supply voltage | 220/240 V - AC at 50/60 Hz |
| Depth | 189 mm |
| Device short name | XGR |
| Earthing system | IT |
| Height | 59 mm |
| Internal impedance | 40 kOhm |
| Material | Plastic |
| Measurement current | 2.5 mA |
| Output frequency | 2.5 Hz |
| Power consumption | <= 15 VA |
| Product or component type | Locating signal generator |
| Product weight | 0.85 kg |
| Range of product | Vigilohm |
| Type of installation to be monitored | 500 V - DC (between poles) <= 440 V - AC at 45...400 Hz (device connected to phase) <= 760 V - AC at 45...400 Hz (device connected to neutral) |
| Width | 108 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
