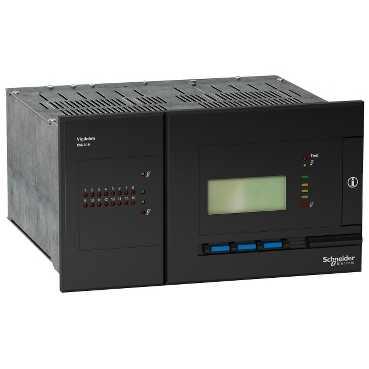

Isolationsovervågning XML316 230 V

Varenr:	50323
El nr:	3322503237
EAN13 nr:	3303430503231
Pakning:	1stk


[Ue] rated operational voltage	<= 760 V AC, 45...400 Hz (device connected to neutral) <= 500 V DC <= 440 V AC, 45...400 Hz (device connected to phase) <= 1700 V AC, 45...400 Hz (device connected to neutral with PHT1000 subassembly) <= 1200 V DC (device connected with PHT1000) <= 1000 V
[Us] rated supply voltage	220...240 V AC, 50/60 Hz (tolerance: - 15...10 %)
Ambient air temperature for operation	-5...55 °C
Ambient air temperature for storage	-20...70 °C
Auxiliary connection terminal	Tunnel type terminals, cable cross section: 1...1.5 mm² rigid Tunnel type terminals, cable cross section: 0.75...1.5 mm² flexible
Breaking capacity	3 A at 400 V AC, cos phi = 0.7 5 A at 230 V AC, cos phi = 0.7 2.5 A at 48 V DC, L/R = 1 ms 0.65 A at 120 V DC, L/R = 1 ms 0.45 A at 220 V DC, L/R = 1 ms 10 A at 24 V DC, L/R = 1 ms
Depth	213.5 mm
Device short name	XML316
Dielectric strength	2500 V
Display type	LCD
Earthing system	IT
Fail safe feature	With
Height	129 mm
IP degree of protection	IP30
Measurement current	<= 5 mA
Measurement voltage	6 V
Mounting mode	Flush-mounted
Mounting position	Horizontal mounting
Mounting support	Cubicle Enclosure Plate
Number of channels	16
Polling time	15 s
Power consumption	<= 30 VA
Product weight	4.5 kg
Range of product	Vigilohm
Scale	0.1...999 kOhm
Signal contacts composition	3 C/O
Signalling function	Transient fault Insulation value display Device fault Alarm
Standards	IEC 364 ch 4 and 5 IEC 61557-8 NF C 15-100 §413.4 UTE C 63-080 classes CPI/XA, DLD/M
Tamperproof of settings	Protected by access code Protected by sealable cover
Test function	Manual, self test
Type of measurement	Network insulation resistance, earth leakage capacitance, local measurement
Width	229 mm

Yderliger oplysninger: Se venligst SE katalog
