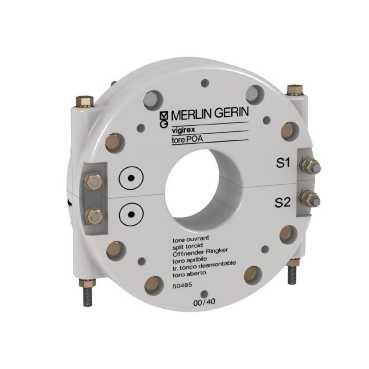

Sumstrĝmstransformer POA D=46 meter
| Varenr: | 50485 |
| El nr: | 3322504854 |
| EAN13 nr: | 3303430504856 |
| Pakning: | 1stk |
 |
| [Icw] rated short-time withstand current | 100 kA / 0.5 s |
| [Ui] rated insulation voltage | 1000 V |
| [Uimp] rated impulse withstand voltage | 12 kV |
| Ambient air temperature for operation | -35...70 °C |
| Ambient air temperature for storage | -55...85 °C |
| Cable outer diameter | 23 mm : 50 mm² (maximum) |
| Calorific value | 8.02 MJ |
| Connections - terminals | Screw : 0.22 mm² |
| Current sensor type | OA type split toroid |
| Depth | 38 mm |
| Device short name | POA |
| Diameter | 46 mm (inner) |
| Environmental characteristic | Salt mist conforming to IEC 60068-2-52 : Kb/2 Exposure to damp heat not in service conforming to IEC 60068-2-30 : 28 cycles 25...55 °C, RH 95 % Exposure to damp heat in service conforming to IEC 60068-2-56 : 48 hours environment category C2 |
| Height | 148 mm |
| Mounting mode | Fixed |
| Mounting support | Cables Plain backplate Slotted backplate Profiled sheet metal |
| Network frequency | 45...440 Hz |
| Network type | AC DC |
| Overvoltage category | IV |
| Pollution degree | Level 3 conforming to IEC 60664-1 |
| Product or component type | Earth leakage current sensor |
| Product weight | 1.3 kg |
| Range of product | Vigilohm Vigirex |
| Residual short-circuit withstand current | 85 kA / 0.5 s conforming to IEC 60947-2 |
| Transformer ratio | 1/1000 |
| Width | 148 mm |
Yderliger oplysninger:
