***Nyt produkt***
Varenr: 50515
Produktet findes ikke i SAP!
 |
| [Us] rated supply voltage | 115...127 V AC, 50/60 Hz |
| Ambient air temperature for operation | -5...55 °C |
| Ambient air temperature for storage | -25...70 °C |
| Auxiliary connection terminal | Tunnel type terminals, cable cross section: 1.5 mm˛ for Vigilohm system bus Cable connector for external bus |
| Communication port protocol | Modbus |
| Data format | 8 bits, no parity, 1 start, 1 stop |
| Depth | 209.5 mm |

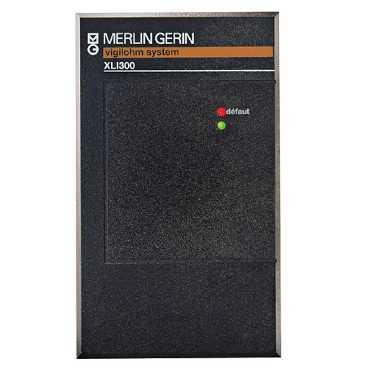

| Device short name | XLI300 |
| Dielectric strength | 2500 V |
| Function available | Internal communication, external communication |
| Height | 129 mm |
| IP degree of protection | IP40 (front) IP30 |
| Mounting mode | Flush-mounted |
| Mounting position | Vertical |
| Power consumption | 30 VA |
| Product weight | 1.864 kg |
| Range of product | Vigilohm |
| Transmission rate | 300...19200 bauds |
| Width | 76 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
