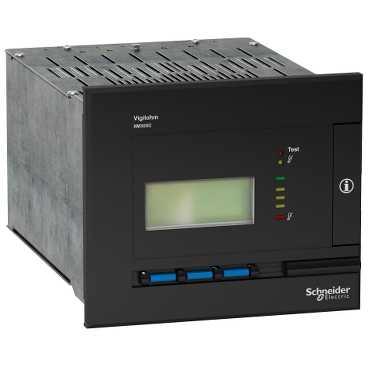

Isolationsmonitor XM300C 415 V


[Ue] rated operational voltage	<= 760 V AC, 45...400 Hz (device connected to neutral) <= 500 V DC <= 440 V AC, 45...400 Hz (device connected to phase) <= 1700 V AC, 45...400 Hz (device connected to neutral with PHT1000 subassembly) <= 1200 V DC (device connected with PHT1000) <= 1000 V
[Us] rated supply voltage	380...415 V AC, 50/60 Hz (tolerance: - 15...10 %)
Ambient air temperature for operation	-5...55 °C
Ambient air temperature for storage	-25...70 °C
Auxiliary connection terminal	Tunnel type terminals, cable cross section: 1.5 mm²
Depth	213.5 mm
Device short name	XM300C
Breaking capacity	3 A at 400 V AC, cos phi = 0.7 5 A at 230 V AC, cos phi = 0.7 2.5 A at 48 V DC, L/R = 1 ms 0.65 A at 120 V DC, L/R = 1 ms 0.45 A at 220 V DC, L/R = 1 ms 10 A at 24 V DC, L/R = 1 ms
Dielectric strength	2500 V
Display type	LCD
Earthing system	IT
Fail safe feature	With
Height	129 mm
IP degree of protection	IP30
Mounting mode	Flush-mounted
Mounting position	Horizontal mounting
Mounting support	Cubicle Enclosure Plate
Power consumption	<= 30 VA
Product weight	3.5 kg
Range of product	Vigilohm
Scale	0.1...999 kOhm
Signal contacts composition	3 C/O
Signalling function	Transient fault Insulation value display Device fault Alarm
Standards	IEC 364 ch 4 and 5 IEC 61557-8 NF C 15-100 §413.4 UTE C 63-080 class CPI/XA
Test function	Manual, self test
Type of measurement	Network insulation resistance, earth leakage capacitance
Width	153 mm
