Varenr: 50617
Produktet findes ikke i SAP!
 |
| [Us] rated supply voltage | 380...415 V AC, 50/60 Hz (tolerance: - 15...10 %) |
| Ambient air temperature for operation | -5...55 °C |
| Ambient air temperature for storage | -20...70 °C |
| Auxiliary connection terminal | Tunnel type terminals, cable cross section: 1.5 mm˛ |
| Depth | 213.5 mm |

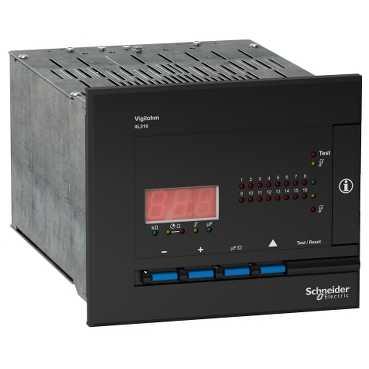

| Device short name | XL316 |
| Dielectric strength | 2500 V |
| Display type | LED |
| Earthing system | IT |
| Fail safe feature | With |
| Height | 129 mm |
| Mounting mode | Flush-mounted |
| Mounting position | Horizontal mounting |
| Breaking capacity | 3 A at 400 V AC, cos phi = 0.7 5 A at 230 V AC, cos phi = 0.7 2.5 A at 48 V DC, L/R = 1 ms 0.65 A at 120 V DC, L/R = 1 ms 0.45 A at 220 V DC, L/R = 1 ms 10 A at 24 V DC, L/R = 1 ms |
| Mounting support | Cubicle Enclosure Plate |
| Number of channels | 16 |
| Polling time | 15 s |
| Power consumption | <= 30 VA |
| Product weight | 3.5 kg |
| Range of product | Vigilohm |
| Scale | 0.1...999 kOhm |
| Signal contacts composition | 2 C/O |
| Signalling function | Insulation value display Alarm |
| Standards | IEC 364 ch 4 and 5 IEC 61557-8 NF C 15-100 §413.4 UTE C 63-080 class DLD/M |
| Test function | Manual, self test |
| Type of measurement | Local measurement |
| Width | 153 mm |
Yderliger oplysninger:
