***Nyt produkt***
Varenr: 50723
Produktet findes ikke i SAP!
 |
| [Us] rated supply voltage | 115/127 V AC, 50/60 Hz (tolerance: - 15...10 %) |
| Ambient air temperature for operation | -5...55 °C |
| Ambient air temperature for storage | -25...70 °C |
| Auxiliary connection terminal | Tunnel type terminals, cable cross section: 1.5 mm˛ |
| Depth | 115.5 mm |

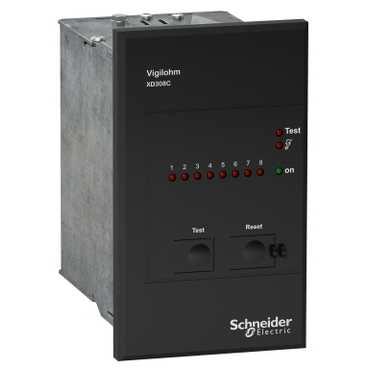

| Device short name | XD308C |
| Dielectric strength | 2500 V |
| Height | 129 mm |
| IP degree of protection | IP30 |
| Mounting mode | Flush-mounted |
| Mounting position | Vertical |
| Mounting support | Front face |
| Number of channels | 8 |
| Polling time | 20 s per connected channel |
| Power consumption | 6 VA |
| Product weight | 0.6 kg |
| Range of product | Vigilohm |
| Signalling function | Insulation fault |
| Test function | Local |
| Width | 76 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
