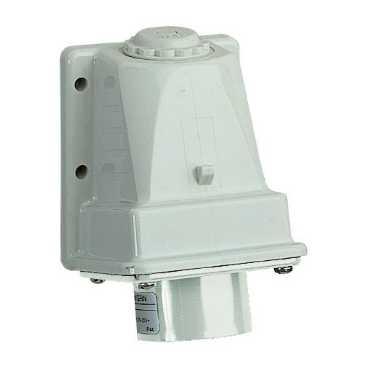

CEE stikkontakt 16A 2P/50VDC IP44
| Varenr: | 82513 |
| El nr: | 3322825135 |
| EAN13 nr: | 3303430825135 |
| Pakning: | 1stk |
 |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 20...25 V 40...50 V |
| Ambient air temperature for operation | -25...40 °C 35 °C ( 86400 s ) |
| Base dimension | 70 x 82 mm |
| Cable cross section | 4...10 mm² |
| Cable outer diameter | 6...23 mm |
| Colour | Grey ( RAL 7035 ) |
| Connections - terminals | Captive screws, completely loosened |
| Contacts material | Nickel plated brass pins: |
| Depth | 81 mm |
| Device short name | PratiKa plug |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Height | 118 mm |
| IK degree of protection | IK08 conforming to EN 62262 |
| IP degree of protection | IP44 conforming to IEC 60529 |
| Mounting mode | Wall-mounted |
| Network type | DC |
| Operating altitude | 2000 m |
| Outlet standard | Industrial |
| Period | 18 months |
| Plug, socket category | Extra-low voltage |
| Plug, socket material | Self-extinguishing engineering polymer |
| Plug, socket, control station shape | Angled |
| Poles description | 2P |
| Product or component type | Plug |
| Product weight | 0.157 kg |
| Range of product | PratiKa |
| Relative humidity | 90 % ( 20 °C ) 70 % ( 30 °C ) 50 % ( 40 °C ) |
| Secondary keyway clockwise position | 10 h |
| Standards | EN 60309-1 EN 60309-2 |
| Thread type | Pg 21 |
| Voltage colour | White |
| Width | 70 mm |
Yderliger oplysninger:
