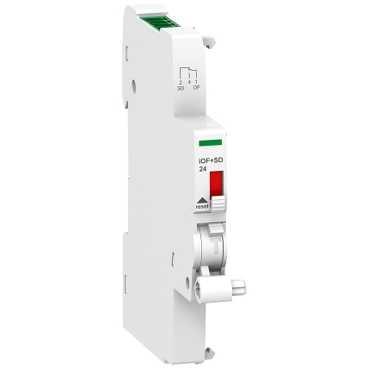

Signalkontakt iOF/SD 24VDC 1NO + 1NC, ComReady, min. 2 mA max. 50mA ComReady B:9 mm
| Varenr: | A9A26897 |
| El nr: | 3322077255 |
| EAN13 nr: | 3606480461613 |
| Pakning: | 1stk |
 |
| [Ie] rated operational current | 0.002...6 A DC 24 V ± 20% |
| [Ui] rated insulation voltage | 500 V conforming to IEC 60664-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60664-1 |
| 9 mm pitches | 1 |
| Ambient air temperature for operation | -35...70 °C |
| Ambient air temperature for storage | -40...85 °C |
| Colour | White |
| Connections - terminals | Spring-loaded terminal Ti24 2 rigid cable(s) 0.5...1.5 mm˛ max Spring-loaded terminal Ti24 2 flexible cable(s) 0.5...1.5 mm˛ max |
| Depth | 73.5 mm |
| Device short name | IOF+SD 24 |
| Electrical durability | 20000 cycles conforming to IEC 60947-5-4 |
| Height | 88 mm |
| IP degree of protection | IP20 |
| Local signalling | Mechanical indicator |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Overvoltage category | III |
| Period | 18 months |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Product compatibility | Ti24 |
| Product or component type | OC and fault contact with PLC interface |
| Product weight | 25 g |
| Quality labels | CE |
| Range of product | IC60 IDPN IID ISW-NA ARA RCA |
| Relative humidity | 93 % at 40 °C |
| RoHS EUR conformity date(YYWW) | 1203 |
| RoHS EUR status | Compliant |
| Signal contacts composition | 1 NO + 1 NC |
| Standards | IEC 60947-5-1 IEC 60947-5-4 |
| Tropicalisation | 2 conforming to IEC 60947-5-1 |
| Width | 9 mm |
| Wire stripping length | 10 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
