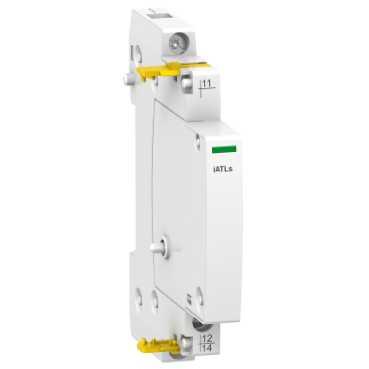

Hjælpemodul iATLs 24-240 V AC clips montage B:9 mm
| Varenr: | A9C15405 |
| El nr: | 3322077556 |
| EAN13 nr: | 3606480374845 |
| Pakning: | 1stk |
 |
| 9 mm pitches | 1 |
| Ambient air temperature for operation | -20...50 °C |
| Colour | White |
| Connections - terminals | Signalling circuit: tunnel type terminals for 2 rigid cable(s) 1.5 mm² Signalling circuit: tunnel type terminals for 2 flexible cable(s) 2.5 mm² |
| Control circuit voltage | 24...240 V DC 24...240 V AC 50/60 Hz |
| Depth | 60 mm |
| Device short name | IATLs |
| Height | 81 mm |
| Mounting mode | Fixed, on right side of TL |
| Mounting support | DIN rail |
| Period | 18 months |
| Product compatibility | ITL (16 A) ITL (32 A) ITLI ITLc ITLm ITLs |
| Product or component type | Remote indication auxiliary |
| Range of product | ITL |
| Relative humidity | 95 % (55 °C) |
| Signal contacts composition | 1 C/O |
| Signalling circuit voltage | 24...240 V AC: 50/60 Hz 0.01...6 A 130 V DC: 0.01…1 A 48 V DC: 0.01…2 A 24 V DC: 0.01...6 A |
| Tropicalisation | 2 |
| Width | 9 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
