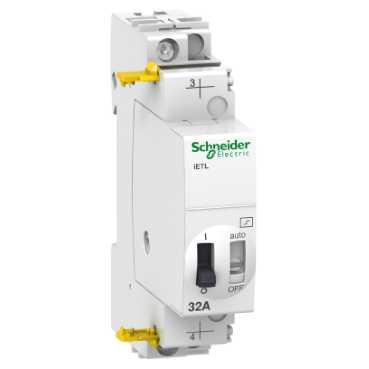

Kiprelæ iETL 32 A 1NO 230/240 V AC påbygningsenhed B:18 mm
| Varenr: | A9C32836 |
| El nr: | 3322078940 |
| EAN13 nr: | 3606480092039 |
| Pakning: | 1stk |
 |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| 9 mm pitches | 2 |
| Ambient air temperature for operation | -20...50 °C |
| Colour | White |
| Connections - terminals | Tunnel type terminals <= 10 mm² |
| Control circuit voltage | 230/240 V AC 50/60 Hz 110 V DC |
| Control signal type | Impulse |
| Control type | Remote control Toggle |
| Depth | 84 mm |
| Device short name | IETL iTL 32 |
| Electrical durability | AC-22: 20000 cycles AC-21: 50000 cycles |
| Height | 60 mm |
| Impulse duration | 50 ms |
| Local signalling | ON/OFF indication |
| Mounting mode | Fixed, on right side of TL |
| Mounting support | 35 mm symmetrical DIN rail |
| Network frequency | 50/60 Hz |
| Network type | AC |
| Noise level | <= 60 dB |
| Period | 18 months |
| Pole contact composition | 1 NO |
| Poles description | 1P |
| Product compatibility | ITL 32A |
| Range of product | ITL |
| Relative humidity | 95 % ( 55 °C ) |
| Relay application | Remote control |
| Remote control type | Illuminated pushbutton 3 mA |
| RoHS EUR conformity date(YYWW) | 0910 |
| RoHS EUR status | Compliant |
| Standards | EN 669-1 EN 669-2-2 |
| Supply inrush power | 19 VA |
| Switching frequency | 5 switching operations/minute |
| Tropicalisation | 2 |
| Width | 18 mm |
Yderliger oplysninger:
