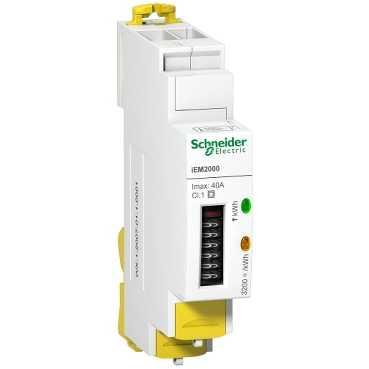

kWh-mċler 40 A 230 V AC uden display
| Varenr: | A9MEM2000T |
| El nr: | 3398991310 |
| EAN13 nr: | 3606480400575 |
| Pakning: | 1stk |
 |
| [In] rated current | 40 A |
| 9 mm pitches | 2 |
| Accuracy class | Active energy : class 1 according to IEC 62053-21 |
| Climatic withstand | Relative humidity : 2 : 95 % at 55 °C Storage temperature : - 40...70 °C Operating temperature (>= 32 A) : - 20...55 °C Operating temperature (< 32 A) : - 20...70 °C |
| Colour | White |
| Communication port support | - |
| Connections - terminals | Tunnel type terminals 1 cable(s) 4 mm² top for remote transfer Tunnel type terminals 1 cable(s) 10 mm² bottom for power circuit |
| Depth | 67 mm |
| Device application | Sub billing |
| Device short name | IEM2000T |
| Display digits | 0 |
| Display type | Without display |
| Frequency measurement range | 48...62 Hz |
| Height | 95 mm |
| Impulse duration | 120 ms |
| Input type | Direct input |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Measurement accuracy | +/- 20 V |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Network frequency | 50 Hz 60 Hz |
| Number of outputs | 1 pulse |
| Output voltage | 5...35 V DC 20 mA |
| Poles description | 1P + N |
| Power consumption in VA | <= 10 VA |
| Product or component type | Active energy hour meter |
| Product weight | 0.073 kg |
| Range | Acti 9 |
| Range of product | Acti 9 iEM2000 |
| Rated voltage | 230 V +/- 20% |
| REACh | Reference not containing SVHC above the threshold |
| RoHS (date code: YYWW) | Compliant - since 1219 - Schneider Electric declaration of conformity |
| Sampling rate | 32 samples/cycle |
| Standards | IEC 61557-12 IEC 62053-21 |
| Sustainable offer status | Not Green Premium product |
| Technology type | Electronic |
| Tightening torque | Remote transfer : 0.8 N.m Power circuit : 1.2 N.m |
| Type of measurement | Active power |
| Width | 18 mm |
Yderliger oplysninger:
