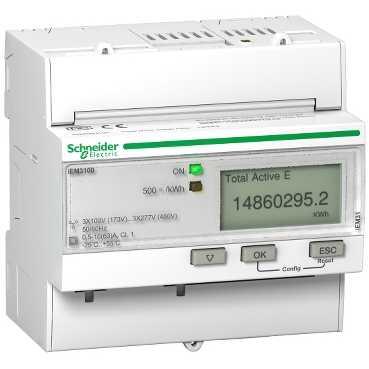

kWh-måler 3P+N 400 V 63 A


Varenr:A9MEM3100
El nr:3398991417
EAN13 nr:3606480481482
Pakning:1stk

[In] rated current63 A
9 mm pitches10
Accuracy classActive energy: class B according to EN 50470-3 Active energy: class 1 according to IEC 61557-12 Active energy: class 1 according to IEC 62053-21
ColourWhite
Connections - terminalsScrew terminals 16 mm²
Depth69 mm
Device applicationSub billing Partial meter
Device short nameIEM3100
Display typeLCD display
Height95 mm
Input typeDirect input
IP degree of protectionBody : IP20 conforming to IEC 60529 Front panel : IP40 conforming to IEC 60529
Local signallingAccuracy checking : flashing LED (yellow) Power ON : indicator light (green)
Maximum value measured99999999.9 kWh
Mounting modeClip-on
Mounting supportDIN rail
Network frequency50 Hz 60 Hz
Overvoltage categoryIII
Period18 months
Poles description1P + N 3P 3P + N
Pollution degree2
Product end of life instructionsAvailable Download End of life manual
Product environmental profileAvailable
Product or component typeEnergy meter
Range of productActi 9 iEM3000
Rated voltage173...480 V 100...277 V
REAChReference not containing SVHC above the threshold
RoHS (date code: YYWW)Compliant - since 1214 -  Schneider Electric declaration of conformity
Sampling rate32 samples/cycle
StandardsIEC 61036 IEC 61557-12 IEC 62053-21 IEC 62053-23 IEC 61010
Sustainable offer statusGreen Premium product
Technology typeElectronic
Type of measurementActive energy
Width90 mm

Yderliger oplysninger: Se venligst SE katalog
