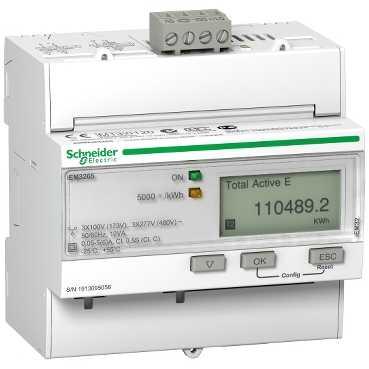

kWh-mċler 3P+N 400 V CT x/5 MID
| Varenr: | A9MEM3265 |
| El nr: | 3398516122 |
| EAN13 nr: | 3606480616518 |
| Pakning: | 1stk |
 |
| [In] rated current | 5 A |
| 9 mm pitches | 10 |
| Accuracy class | Active energy: class C according to EN 50470-3 Active energy: class 0.5S according to IEC 61557-12 Active energy: class 0.5S according to IEC 62053-22 |
| Colour | White |
| Communication port protocol | BACnet : 9.6, 19.2, 38.4, 57.6, 76.8 kbauds, insulation: 4000 V |
| Connections - terminals | Screw terminals 2.5 mm² for voltage circuit Screw terminals 6 mm² for current circuit |
| Depth | 69 mm |
| Device application | Sub billing Multi-tariff Partial meter |
| Device short name | IEM3265 |
| Display type | LCD display |
| Height | 95 mm |
| Input type | External CT |
| IP degree of protection | Body : IP20 conforming to IEC 60529 Front panel : IP40 conforming to IEC 60529 |
| Local signalling | Overload : alarm Accuracy checking : flashing LED (yellow) Power ON : indicator light (green) |
| Maximum value measured | 99999999 MWh |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Network frequency | 50 Hz 60 Hz |
| Number of inputs | 1 digital |
| Number of outputs | 1 digital (static) |
| Overvoltage category | III |
| Period | 18 months |
| Poles description | 1P + N 3P 3P + N |
| Pollution degree | 2 |
| Product certifications | MID conforming to EN 50470-3 MID conforming to EN 50470-1 |
| Product end of life instructions | Available |
| Product environmental profile | Available |
| Product or component type | Energy meter |
| Range of product | Acti 9 iEM3000 |
| Rated voltage | 173...480 V 100...277 V |
| REACh | Reference not containing SVHC above the threshold |
| RoHS (date code: YYWW) | Compliant - since 1308 - Schneider Electric declaration of conformity |
| Sampling rate | 32 samples/cycle |
| Standards | IEC 61036 IEC 61557-12 IEC 62053-22 IEC 62053-23 IEC 61010 |
| Sustainable offer status | Green Premium product |
| Technology type | Electronic |
| Type of measurement | Active and reactive power Current Voltage Active and reactive energy |
| Width | 90 mm |
Yderliger oplysninger:
