| [Ui] rated insulation voltage | 300 V between coil circuit/contact circuits conforming to IEC 60947-1 2000 V between terminals/mounting rails |
| [Ui] rated insulation voltage | 300 V imellem coil circuit/contact circuits i henhold til IEC 60947-1 2000 V imellem terminals/mounting rails |
| [Uimp] rated impulse withstand voltage | 2.5 kV solid state output(s) 6 kV relay output(s) |
| [Uimp] rated impulse withstand voltage | 2.5 kV solid state output(s) 6 kV relæ output(s) |
| [Us] rated supply voltage | 24 V DC (sensor/controller side) 24 V DC (controller side) |
| Ambient air temperature for operation | -5...60 °C conforming to IEC 61131-2 |
| Ambient air temperature for operation | -5...60 °C i henhold til IEC 61131-2 |
| Ambient air temperature for storage | -40...80 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40...80 °C i henhold til IEC 61131-2 |
| Antal digitale udgange | 6 relæ output(s), 3000 mA 2 solid state output(s), 2000 mAved kilde |
| Antal kanaler | 20 |
| Antal klemmer pr. kanal | 2 |
| Connections - terminals | Screw type terminals, clamping capacity: 2 x 0.2...2 x 2.5 mm² AWG 28...AWG 16 solid Screw type terminals, clamping capacity: 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20 flexible with cable end Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² A |
| Connector destination | Twido programmable controller |
| Connector type | HE-10 |
| Current per channel | 0.009 A relay output(s) 0.0045 A solid state output(s) |
| Current per output common | 4 A solid state output 10 A relay output |
| Current state 0 guaranteed | 0.4 mA solid state output(s) (sensor/controller side) |
| Current state 1 guaranteed | 5.5 mA solid state output(s) (sensor/controller side) |
| Digital indgangslogik | Zink |
| Digital indgangsnummer | 12 |
| Digital udgangsfunktion | 1 NO |
| Digital udgangspænding | 5...30 V DC relæ output(s) 24 V DC solid state output(s) 110...250 V AC relæ output(s) |
| Discrete input logic | Sink |
| Discrete input number | 12 |
| Discrete output function | 1 NO |
| Discrete output number | 6 relay output(s), 3000 mA 2 solid state output(s), 2000 mA at source |
| Discrete output voltage | 5...30 V DC relay output(s) 24 V DC solid state output(s) 110...250 V AC relay output(s) |
| EAN-nummer | 3389110572254 |
| Electrical durability | 500000 cycles, maximum switching current: 500 mA DC-13 relay output(s) (preactuator side) 500000 cycles, maximum switching current: 400 mA AC-15 relay output(s) (preactuator side) 500000 cycles, maximum switching current: 3000 mA DC-12 relay output(s) (pr |
| Elektrisk holdbarhed | 500000 kredsløb, maksimum omskiftningsstrøm: 500 mA DC-13 relæ output(s) (preactuator side) 500000 kredsløb, maksimum omskiftningsstrøm: 400 mA AC-15 relæ output(s) (preactuator side) 500000 kredsløb, maksimum omskiftningsstrøm: 3000 mA DC-12 relæ output( |
| Fastgørelse | By screws Med klips til 35 mm symmetrical DIN rail i henhold til IEC 60715 |
| Fixing mode | By screws By clips on 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Forbindelsestype | HE-10 |
| Forsyningsspændingsgrænser | 19...30 V DC i henhold til IEC 61131-2 (sensor/controller side) 19...30 V DC i henhold til IEC 61131-2 (controller side) |
| Forureningsgrad | 2 i henhold til IEC 60664-1 |
| Frekens | 300 Hz solid state 20 Hz relæ |
| IP degree of protection | IP2x conforming to IEC 60529 |
| IP kapslingsklasse | IP2x i henhold til IEC 60529 |
| Klemmenummer | 26 |
| Koblet strøm | 3000 mA til relæ udgang 2000 mA til solid state udgang 15 mA til indgang |
| Kommerciel status | Commercialised |
| Kompatibilitet | TWDLMDA20DTK TWDLMDA40DTK |
| Lagerkode | Ikke på lager |
| Mechanical durability | 20000000 cycles at 20 °C |
| Mekanisk holdbarhed | 20000000 kredsløb på 20 °C |
| Minimum sluttestrøm | 100 mA relæ output(s) 1 mA solid state output(s) |
| Minimum switching current | 100 mA relay output(s) 1 mA solid state output(s) |
| Modstand mod hurtige transienter | 2 kV i henhold til IEC 61000-4-4 Level 3 |
| Modstand mod udstrålede felter | 10 V/m (80000000...2000000000 Hz) i henhold til IEC 61000-4-3 Level 3 |
| Modstand til glødetråd | 750 °C i henhold til IEC 60695-2-11 |
| Number of channels | 20 |
| Number of terminal per channel | 2 |
| Overspændingskategori | II i henhold til IEC 60664-1 |
| Overvoltage category | II conforming to IEC 60664-1 |
| Pin number | 26 |
| Polaritetsfordeling | 1 common/6 channels til relæ udgang 1 common/2 channels til solid state udgang 1 common/12 channels til indgang |
| Polarity distribution | 1 common/6 channels for relay output 1 common/2 channels for solid state output 1 common/12 channels for input |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Product certifications | CSA UL |
| Product compatibility | TWDLMDA20DTK TWDLMDA40DTK |

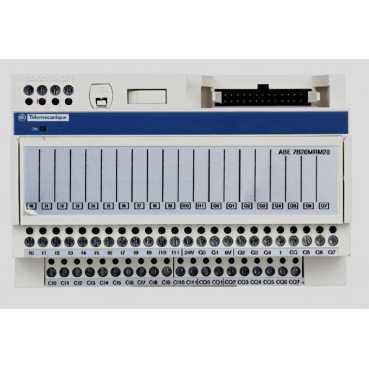

| Product or component type | Discrete I/O sub-base |
| Product weight | 0.43 kg |
| Productcertificeringer | CSA UL |
| Produktsortiment | Advantys Telefast ABE7 |
| Produkttype | Diskret I/O sub-base |
| Range of product | Advantys Telefast ABE7 |
| Reaktionstid | <= 5 ms from state 0 to 1 relæ output(s) <= 2.5 ms from state 1 to 0 relæ output(s) <= 0.4 ms from state 1 to 0 solid state output(s) <= 0.01 ms from state 0 to 1 solid state output(s) |
| Resistance to electrostatic discharge | 8 kV (air) conforming to IEC 61000-4-2 level 3 4 kV (contact) conforming to IEC 61000-4-2 level 3 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Resistance to radiated fields | 10 V/m (80000000...2000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Response time | <= 5 ms from state 0 to 1 relay output(s) <= 2.5 ms from state 1 to 0 relay output(s) <= 0.4 ms from state 1 to 0 solid state output(s) <= 0.01 ms from state 0 to 1 solid state output(s) |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Shockmodstand | 15 gn til 11 ms i henhold til IEC 60068-2-27 |
| Short circuit protection | 2 A intern sikring, 5 x 20 mm, hurtigblæser (controller side) |
| Short circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (controller side) |
| Spændingstilstand 0 garanteret | 2 V relæ output(s) (sensor/controller side) 10 V solid state output(s) (sensor/controller side) |
| Spændingstilstand 1 garanteret | 16.8 V relæ output(s) (sensor/controller side) 16 V solid state output(s) (sensor/controller side) |
| Standarder | IEC 61131-2 Type 1 |
| Standards | IEC 61131-2 Type 1 |
| Status LED | 1 LED for power ON |
| Status LED | 1 LED til POWER ON |
| Stikplacering | Twido programmerbar kontroller |
| Strøm pr. fælles udgang | 4 A solid state udgang 10 A relæ udgang |
| Strøm pr. kanal | 0.009 A relæ output(s) 0.0045 A solid state output(s) |
| Supply current | <= 2 A |
| Supply voltage limits | 19...30 V DC conforming to IEC 61131-2 (sensor/controller side) 19...30 V DC conforming to IEC 61131-2 (controller side) |
| Switched current | 3000 mA for relay output 2000 mA for solid state output 15 mA for input |
| Switching frequency | 300 Hz solid state 20 Hz relay |
| Tightening torque | 0.6 N.m (with flat Ø 3.5 mm) |
| Tilgangsstrøm | <= 2 A |
| Tilspændingsmoment | 0.6 N.m (with flat Ø 3.5 mm) |
| Tilstand 0 garanteret | 0.4 mA solid state output(s) (sensor/controller side) |
| Tilstand 1 garanteret | 5.5 mA solid state output(s) (sensor/controller side) |
| Vibration resistance | 2 gn (f = 10...150 Hz) conforming to IEC 60068-2-6 |
| Vibrationsmodstand | 2 gn (f = 10...150 Hz) i henhold til IEC 60068-2-6 |
| Voltage drop on power supply fuse | 0.3 V |
| Voltage state 0 guaranteed | 2 V relay output(s) (sensor/controller side) 10 V solid state output(s) (sensor/controller side) |
| Tilslutningsklemmer | Screw type terminals, clamping capacity: 2 x 0.2...2 x 2.5 mm² AWG 28...AWG 16 solid Screw type terminals, clamping capacity: 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20 flexible with cable end Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² A |
| Voltage state1 guaranteed | 16.8 V relay output(s) (sensor/controller side) 16 V solid state output(s) (sensor/controller side) |
| Vægt | 0.43 kg |
