| [Ie] rated operational current | 5 A DC-12 Ue: 24 V per 1000000 cycles conforming to IEC 60947-5-1 4 A AC-12 Ue: 230 V per 1000000 cycles conforming to IEC 60947-5-1 1 A DC-13 Ue: 24 V per 1000000 cycles conforming to IEC 60947-5-1 1 A AC-15 Ue: 230 V per 1000000 cycles conforming to IEC |
| [In] rated current | <= 62 mA DC <= 55 mA AC |
| [Ith] conventional free air thermal current | 12 A conforming to IEC 60947-1 |
| [Uc] control circuit voltage | 24 V |
| [Ue] rated operational voltage | <= 230 V AC conforming to IEC 60947-5-1 <= 125 V DC conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 250 V conforming to VDE 0110 group C 250 V conforming to IEC 60947-1 |
| Ambient air temperature for operation | -5...40 °C unrestricted operation -20...60 °C at Un |
| Ambient air temperature for storage | -40...70 °C |
| Arbejdsfrekvens i Hz | <= 0.5 Hz at Ie <= 6 Hz at no-load |
| Beskyttelsesbehandling | TC |
| Brandmodstand | 850 °C conforming to IEC 60695-2-1 |
| Bredde på trinstørrelser | 17.5 mm |
| Control circuit type | AC/DC |
| Dielektrisk gennemslagsholdbarhed | 4000 V for 1 minute between coil circuit and contact circuits 2500 V for 1 minute between wired interface and earth 1500 V for 1 minute between independent contacts |
| Driftshøjde | <= 3000 m |
| Driftsstilling | Any position |
| Driftstid | <= 12 ms between energisation of coil and closing of NO contact <= 12 ms between energisation of coil and closing of NC contact <= 12 ms between de-energisation of coil and closing of NO contact <= 12 ms between de-energisation of coil and closing of NC c |
| Effekttab i W | <= 1.5 W |
| Electromagnetisk kompatibilitet | Rapid transients immunity test, on power supply 2 kV conforming to IEC 61000-4-4 Rapid transients immunity test, on input/output 1 kV conforming to IEC 61000-4-4 Electrostatic discharge immunity test Level 3, 8 kV conforming to IEC 61000-4-2 1.2/50 ms sho |
| Elektrisk driftsikkerhed | <= 0.00000001 |
| Flammemodstand | V0 conforming to UL 94 |
| Forureningsgrad | 3 conforming to IEC 60947-5-1 |
| Holdestrøm | >= 5.2 mA AC >= 4.9 mA DC |
| Housing colour | Harmaa |
| Imunitet over for microafbrydelser | 8 ms |
| Installationskategori | II conforming to IEC 60947-1 |
| IP kapslingsklasse | 18-22 conforming to IEC 60529 |
| Kontaktype og sammensætning | 1 NC + 1 NO |
| Ledertværsnit | 0.6...2.5 mm², 1 or 2 wires fleksibel uden kabel ende 0.34...2.5 mm², 1 or 2 wires fleksibel med kabel ende 0.27...4 mm², 1 wire siv 0.27...2.5 mm², 2 lednings siv |
| Lokal indikering | Green mechanical indicator for position of contacts and 1 green LED control signal state |
| Masimal spænding | 125 V DC |
| Mekanisk holdbarhed | >= 10000000 cycles |
| Minimum sluttestrøm | 3 mA |
| Minimum spænding | 17 V |
| Modsat polaritetsbeskyttelse | Med, circuit application: Ja |
| Montagevejledning | Asymmetrisk DIN skinne Kombination skinne Symmetrisk DIN skinne |
| Netfrekvens | 50/60 Hz |
| Overlapningstid | <= 1 ms |
| Productcertificeringer | BV CSA DNV LROS (Lloyds register of shipping) UL |

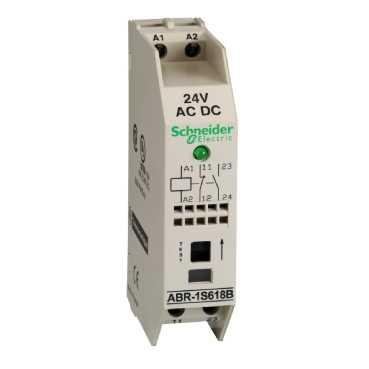

| Produkttype | Electromechanical output interface module |
| Range of product | Interface for discrete signals |
| Shockmodstand | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Short circuit protection | 16 A external fuse gG (Ik <= 2.5 kA AC and Ik <= 100 A DC) 16 A external fuse gF (Ik <= 2.5 kA AC and Ik <= 100 A DC) |
| Standarder | IEC 60947-5-1 |
| Styrekredsens frekvens | 50/60 Hz |
| Styrespændingsgrænse | 30 V energization threshold: 16.5 V |
| Tid for kontaktspring | <= 3 ms |
| Tilslutningsklemmer | Skrue klemmeterminal |
| Udkoblingsspænding | <= 3.8 V |
| Vibrationsmodstand | 6 gn (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Vægt | 0.095 kg |
