| [Ie] rated operational current | 1.7 A DC-12 Ue: 24 V per 1000000 cycles conforming to IEC 60947-5-1 1.5 A DC-13 Ue: 24 V per 1000000 cycles conforming to IEC 60947-5-1 3 A AC-12 Ue: 230 V per 1000000 cycles conforming to IEC 60947-5-1 1 A AC-15 Ue: 230 V per 1000000 cycles conforming to |
| [In] rated current | <= 28 mA |
| [Ith] conventional free air thermal current | 5 A conforming to IEC 60947-1 |
| [Uc] control circuit voltage | 24 V |
| [Ue] rated operational voltage | <= 230 V AC conforming to IEC 60947-5-1 <= 120 V DC conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 300 V conforming to IEC 60947-1 250 V conforming to VDE 0110 group C |
| Ambient air temperature for operation | -5...55 °C from 0.85...1.1 Us -5...40 °C unrestricted operation -25...70 °C at Us with 8 mm space between ABR2S1... -25...55 °C at Us |
| Ambient air temperature for storage | -40...80 °C |
| Arbejdsfrekvens i Hz | 0.5 Hz at Ie 10 Hz at no-load |
| Beskyttelsesbehandling | TC |
| Brandmodstand | 960 °C conforming to IEC 60695-2-1 |
| Bredde på trinstørrelser | 12 mm |
| Control circuit type | DC |
| Driftshøjde | <= 3000 m |
| Driftsstilling | Any position |
| Driftstid | <= 12 ms between de-energisation of coil and closing of NO contact DC <= 10 ms between energisation of coil and closing of NO contact DC |
| Effekttab i W | 0.64 W |
| Elektrisk driftsikkerhed | <= 0.00000001 |
| Flammemodstand | V0 conforming to UL 94 |
| Dielektrisk gennemslagsholdbarhed | 4000 V for 1 minute between coil circuit and contact circuits 2500 V for 1 minute between wired interface and earth 1000 V for 1 minute between open contacts |
| Electromagnetisk kompatibilitet | Fast transients immunity test Level 3, on power supply 2 kV conforming to IEC 61000-4-4 Fast transients immunity test Level 3, on input/output 1 kV conforming to IEC 61000-4-4 Electrostatic discharge immunity test Level 3, 8 kV conforming to IEC 61000-4-2 |
| Forureningsgrad | 2 conforming to IEC 60947-1 |
| Holdestrøm | 2 mA |
| Imunitet over for microafbrydelser | 1 ms |
| Installationskategori | II conforming to IEC 60947-1 |
| IP kapslingsklasse | 18-22 conforming to IEC 60529 |
| Kontaktype og sammensætning | 1 NO |
| Ledertværsnit | 0.6...2.5 mm², 1 or 2 wires fleksibel uden kabel ende 0.34...2.5 mm², 1 or 2 wires fleksibel med kabel ende 0.27...4 mm², 1 wire siv |
| Lokal indikering | Green mechanical indicator for position of contacts and 1 green LED control signal state |
| Masimal spænding | 250 V AC 150 V DC |
| Mekanisk holdbarhed | >= 10000000 cycles |
| Minimum sluttestrøm | 5 mA |
| Minimum spænding | 5 V |
| Modsat polaritetsbeskyttelse | Med for Ja |
| Montagevejledning | Asymmetrisk DIN skinne Kombination skinne Symmetrisk DIN skinne |
| Netfrekvens | 50/60 Hz |
| Productcertificeringer | BV CSA DNV LROS (Lloyds register of shipping) UL |

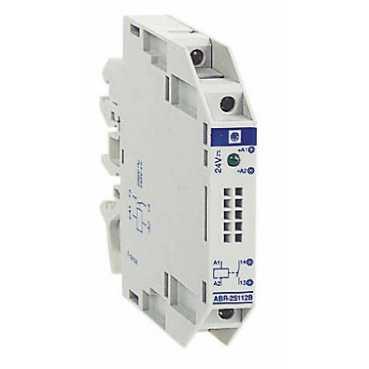

| Produkttype | Slim electromechanical output interface module |
| Range of product | Interface for discrete signals |
| Salg pr udelelig antal | 5 |
| Shockmodstand | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Short circuit protection | 6.3 A external fuse hurtigblæser (Ik <= 1 kA AC and Ik <= 100 A DC) |
| Standarder | IEC 60947-5-1 |
| Styrespændingsgrænse | 28.8 V energization threshold: 16.9 V |
| Tid for kontaktspring | <= 5 ms |
| Tilslutningsklemmer | Skrue klemmeterminal |
| Udkoblingsspænding | <= 3.8 V |
| Vibrationsmodstand | 3 gn (f = 10...150 Hz) conforming to IEC 60068-2-6 |
| Vægt | 0.041 kg |
