| [In] rated current | <= 12.5 mA |
| [Uc] control circuit voltage | 230...240 V |
| [Ue] rated operational voltage | 5...48 V |
| [Ui] rated insulation voltage | 300 V conforming to IEC 60947-1 250 V conforming to VDE 0110 group C |
| Ambient air temperature for operation | -5...55 °C unrestricted operation -25...70 °C at Us |
| Ambient air temperature for storage | -40...80 °C |
| Beskyttelsesbehandling | TC |
| Brandmodstand | 960 °C conforming to IEC 60695-2-1 |
| Bredde på trinstørrelser | 9.5 mm |
| Control circuit type | AC |
| Dielektrisk gennemslagsholdbarhed | 4000 V between I/O for 1 minute 2500 V between wired interface and earth for 1 minute |
| Driftshøjde | <= 300 m |
| Driftsstilling | Any position |
| Electromagnetisk kompatibilitet | Fast transients immunity test Level 3, on power supply 2 kV conforming to IEC 61000-4-4 Fast transients immunity test Level 3, on input/output 1 kV conforming to IEC 61000-4-4 Electrostatic discharge immunity test Level 3, 8 kV conforming to IEC 61000-4-2 |
| Fejlstrøm | 0.1 mA ved stadie 0 |
| Flammemodstand | V0 conforming to UL 94 |
| Forureningsgrad | 2 conforming to IEC 60947-1 |
| Frekens | <= 25 Hz 0,5 |
| Installationskategori | II conforming to IEC 60947-1 |
| IP kapslingsklasse | 18-22 conforming to IEC 60529 |
| Kontaktype og sammensætning | 1 NC |
| Ledertværsnit | 0.6...2.5 mm², 1 or 2 wires fleksibel uden kabel ende 0.34...2.5 mm², 1 or 2 wires fleksibel med kabel ende 0.27...4 mm², 1 wire siv |
| Lokal indikering | 1 LED indicating control signal state |
| Maximum sluttestrøm | 50 mA |
| Minimum sluttestrøm | 1 mA |
| Modsat polaritetsbeskyttelse | Intern for output circuit |
| Montagevejledning | Asymmetrisk DIN skinne Kombination skinne Symmetrisk DIN skinne |
| Mærkespændingsgrænser | 2...60 V |
| Output circuit type | DC |
| Productcertificeringer | BV CSA DNV LROS (Lloyds register of shipping) UL |

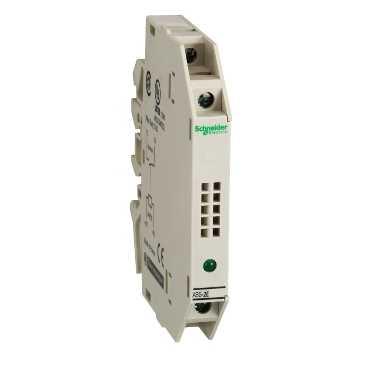

| Produkttype | Slim solid state input interface module |
| Range of product | Interface for discrete signals |
| Reaktionstid | <= 20 ms from state 1 to state 0 <= 10 ms from state 0 to state 1 |
| Salg pr udelelig antal | 5 |
| Shockmodstand | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Short circuit protection | 0.25 A external fuse hurtigblæser (Ik <= 100 A DC) |
| Spændingstilstand 0 garanteret | 48 V |
| Spændingstilstand 1 garanteret | 173 V |
| Standarder | IEC 60947-5-1 |
| Styrekredsens frekvens | 50 Hz |
| Styrespændingsgrænse | 264 V |
| Tilslutningsklemmer | Skrue klemmeterminal |
| Tilstand 0 garanteret | 2.5 mA |
| Tilstand 1 garanteret | 7.9 mA |
| Udkoblingsspænding | <= 1 V ved stadie 1 |
| Vibrationsmodstand | 5 gn (f = 10...150 Hz) conforming to IEC 68-2-6 |
| Vægt | 0.033 kg |
