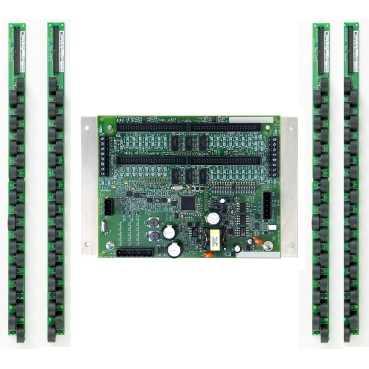

BCPM strømovervågning - 30xCT 50A
| Varenr: | BCPMSCA30S |
| El nr: | 3398991048 |
| EAN13 nr: | 3606480343988 |
| Pakning: | 1stk |
 |
| [Us] rated supply voltage | 90...277 V, AC, 50/60 Hz +/- 1 % |
| Ambient air temperature for storage | -40...70 °C |
| Analog indgangstype | Split core CT, 0.333 V x 30 |
| Bredde | 288 mm |
| Climatic withstand | Relative humidity 0...60 °C 0,95 |
| Datakommunikation | Over voltage alarm Under voltage alarm High-high current alarm High current alarm Low current alarm Low-low current alarm |
| Energy management | Sub billing and cost allocation |
| Enhedens korte navn | BCPM |
| Højde | 146 mm |
| Kommunikationsnetværk | Modbus RTU |
| Målenøjagtighed | 0,01 voltage 90…277 V 0,03 mains current 2…100 % 0,03 mains current 1…100 % 0,01 branch current 2…100 A 0,02 branch current 0.25…2 A |
| Måletype | Activ energi Effekt faktor Activ effekt Frekvens Strøm Voltage |
| Netfrekvens | 50/60 Hz |
| Opdateringstid | 1.8 s |
| Power monitoring | Basic instrumentation |
| Power quality analysis | Voltage sag and swell detection |
| Productcertificeringer | UL 508 |
| Produkttype | Multi-circuit energy meter |
| Protokol for kommunikationsport | RS485 |
| Range of product | PowerLogic |
| Spændingsmåling | 150...480 V phase to phase 90...277 V phase to neutral |
| Standarder | EN 61010 |
| Variant | Advanced |
| Vægt | 1.5 kg |
Yderliger oplysninger:
