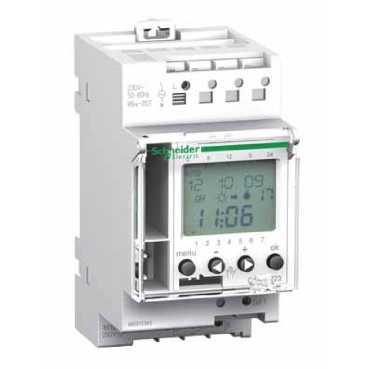

Skumringsrelæ IC Astro 1C 10 A 230 V uden fod
| Varenr: | CCT15224 |
| El nr: | 3323140000 |
| EAN13 nr: | 3606480179631 |
| Pakning: | 1stk |
 |
| Function available | Automatic time changeover Coupling with time switch functions Control by calculation of sunrise/sunset times |
| Højde | 85 mm |
| Indstillingsmåde | Weekly programming |
| IP kapslingsklasse | IP20 B |
| Kommerciel status | Commercialised |
| Kompatibilitet | Mechanical compatibility with electrical distribution comb busbars |
| Lagerkode | På lager |
| Maximum number of switchings | 84 |
| Maximum sluttestrøm | 16 A - 250 V AC pf = 1 10 A - 250 V AC pf = 0.6 |
| Minimum interval duration | 1 min |
| Montagevejledning | DIN skinne |
| Målenøjagtighed | +/- 1 s/day |
| Power consumption | 3 VA |
| Product end of life instructions | Available Download Bortskaffelsesmanual |
| Product environmental profile | Tilgængelig |
| Produktsortiment | Acti 9 |
| Produkttype | Programmable astronomic twilight switch |
| REACh | Reference contains SVHC above the threshold - Go to CaP for more details |
| RoHS (date code: YYWW) | Compliant - since 1019 - Schneider Electric declaration of conformity |
| Sprog | Dansk Hollandsk English Estland Finsk Fransk Tysk Italiensk Letland Litauen Russisk Svensk Ukraine Tyrkiet |
| Sustainable offer status | Green Premium produkt |
| Tilslutningsklemmer | X 2 skrueløse terminaler : <= 2.5 mm² |
| Vægt | 132 g |
| [Ue] rated operational voltage | 230 V ( +10 % -15 % ) AC 50/60 Hz |
| Anbefalede temperatur ved betjening | -25...45 °C |
| Antal kanaler | 1 |
| Antal moduler á 9 mm | 5 |
| Backup tid | 6 årsprogram med gem |
| Batteritype | Lithium |
| Belastningstype | Parallel-corrected mercury and sodium vapour lamps, ( 250 VA ) Dual mounted fluorescent tube, ballast : varmeledning, ( 10 x 100 W ) Dual mounted fluorescent tube, ballast : varmeledning, ( 20 x 58 W ) Dual mounted fluorescent tube, ballast : varmeledning |
| Betjening | By calculation of sunrise/sunset times |
| Bredde | 45 mm |
| Device application | Building |
| Displaytype | Bagrundsbeslyst LCD |
| Dybde | 65 mm |
| EAN-nummer | 3606480179631 |
| Enhedens korte navn | IC Astro 1C |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
