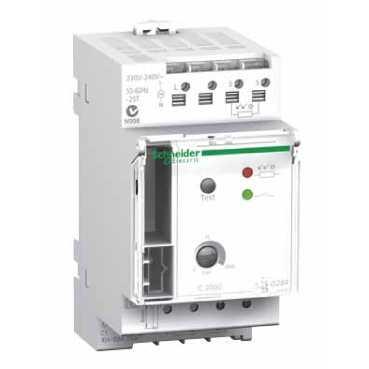

Skumringsrelæ IC2000 1C 230 V med fotocelle
| Varenr: | CCT15284 |
| El nr: | 3323140042 |
| EAN13 nr: | 3606480179532 |
| Pakning: | 1stk |
 |
| [Ue] rated operational voltage | 230 V ( +10 % -15 % ) AC 50/60 Hz |
| Anbefalede temperatur ved betjening | -25...50 °C |
| Antal kanaler | 1 |
| Antal moduler á 9 mm | 5 |
| Belastningstype | Fluocompact lamp, ballast : Electronisk, ( 9 x 7 W ) Fluocompact lamp, ballast : Electronisk, ( 7 x 23 W ) Fluocompact lamp, ballast : Electronisk, ( 7 x 20 W ) Fluocompact lamp, ballast : Electronisk, ( 7 x 15 W ) Fluocompact lamp, ballast : Electronisk, |
| Betjening | By brightness detection |
| Bredde | 45 mm |
| Device application | Building |
| Dybde | 65 mm |
| EAN-nummer | 3606480179532 |
| Elektrisk isolationsklasse | Klasse II |
| Enhedens korte navn | IC2000 |
| Function available | Cabling test function with a push-button on front face |
| Højde | 85 mm |
| IP kapslingsklasse | IP20 B |
| Kommerciel status | Commercialised |
| Lagerkode | På lager |
| Light intensity adjustment | 2...2000 lux |
| Maximum sluttestrøm | 16 A - 250 V AC pf = 1 10 A - 250 V AC pf = 0.6 |
| Medfølgende udstyr | Switchboard cell |
| Montagevejledning | DIN skinne |
| Power consumption | 6 VA |
| Product end of life instructions | Available Download Bortskaffelsesmanual |
| Product environmental profile | Tilgængelig |
| Produktsortiment | Acti 9 |
| Produkttype | Twilight switch |
| REACh | Reference contains SVHC above the threshold - Go to CaP for more details |
| RoHS (date code: YYWW) | Will be Compliant on 4Q2019 |
| Standarder | EN 60529 EN 60669 |
| Status LED | Rød LED : brightness less than the threshold Grøn LED : threshold reached |
| Sustainable offer status | Ikke Green Premium produkt |
| Tidsforsinkelse | >= 60 s ( on breaking contact ) >= 60 s ( on closing ) |
| Tilslutningsklemmer | X 2 skrueløse terminaler : <= 2.5 mm² |
| Vægt | 280 g |
| Åbningsafstand | < 3 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
