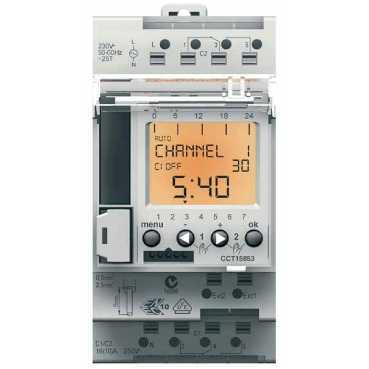

Acti 9 - IHP+ - 2C digital tidskontakt - 24 timer + 7 dage


[Ue] rated operational voltage	230 V ( +/- 10 % ) AC 50/60 Hz
9 mm pitches	5
Accuracy	+/- 1 s/day 20 °C
Ambient air temperature for operation	-10...50 °C
Backup time	6 years time and program saving
Battery life	6 yr
Battery type	Lithium
Colour tint	White (RAL 9003)
Cycle duration	24 hours + 7 days
Depth	66 mm
Device application	Building
Device short name	IHP + 2c
Display type	Backlit LCD
Function available	Pulse programming Automatic winter/summer time changeover
Height	85 mm
IP degree of protection	IP20 B
Language	English French German Italian Portuguese Spanish
Maximum number of switchings	84
Maximum switching current	16 A - 250 V AC pf = 1 10 A - 250 V AC pf = 0.6
Minimum interval duration	1 s
Modular device name	IHP +
Number of channels	2
Number of inputs	2 input(s) impulse and maintained
Power consumption	7 VA
Product compatibility	Mechanical compatibility with electrical distribution comb busbars
Product end of life instructions	Available Download End of life manual
Product environmental profile	Available Download Product environmental
Product mounting	DIN rail
Product or component type	Programmable digital time switch
Provided equipment	Memory key
Range of product	Acti 9
Sustainable offer status	Green Premium product
Type of setting	Absence for holidays function Random function
Width	45 mm
