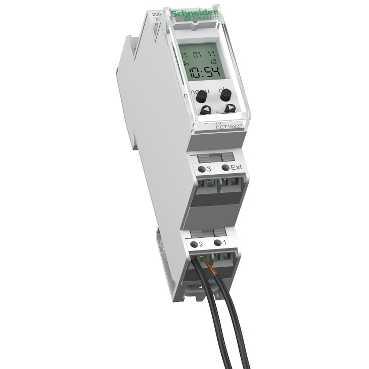

Acti 9 - IHP - 1C digital tidskontakt - 24 timer + 7 dage
| Varenr: | CCT15837 |
| El nr: | 3323140123 |
| EAN13 nr: | 3606480492341 |
| Pakning: | 1stk |
 |
| [Ue] rated operational voltage | 230 V ( - 10...15 % ) AC 50/60 Hz |
| 9 mm pitches | 2 |
| Accuracy | +/- 0.5 s/day 25 °C |
| Ambient air temperature for operation | -25...55 °C |
| Backup time | 10 years time and program saving |
| Battery life | 10 yr |
| Battery type | Lithium |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screwless terminals : 2 x 0.5...2.5 mm˛ |
| Cycle duration | 24 hours + 7 days |
| Depth | 66 mm |
| Device application | Building |
| Device short name | IHP + 1c 18 mm |
| Display type | LCD |
| Function available | Pulse programming Operating hours counter External input for override Automatic winter/summer time changeover |
| Height | 90 mm |
| IP degree of protection | IP20 B |
| Language | Dutch English French Italian Portuguese Spanish |
| Maximum number of switchings | 84 |
| Maximum switching current | 4 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1 |
| Minimum interval duration | 1 min |
| Modular device name | IHP + |
| Number of channels | 1 |
| Number of inputs | 1 input(s) impulse and maintained |
| Power consumption | 0.4 W |
| Product mounting | DIN rail |
| Product or component type | Programmable digital time switch |
| Product weight | 90 g |
| Provided equipment | Memory key Programming kit |
| Range of product | Acti 9 |
| Type of setting | Absence for holidays function Random function PIN code |
| Width | 18 mm |
Yderliger oplysninger:
