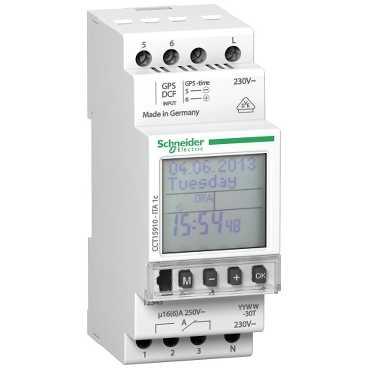

Acti 9 - ITA - 1C ĺrlig tidskontakt - 24 timer + 7 dage + ĺr
| Varenr: | CCT15910 |
| El nr: | 3324000136 |
| EAN13 nr: | 3606480625176 |
| Pakning: | 1stk |
 |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
| 9 mm pitches | 4 |
| Accuracy | +/- 0.5 s/day 20 °C |
| Ambient air temperature for operation | -30...55 °C |
| Battery life | 10 yr |
| Battery type | Lithium |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screw terminals |
| Cycle duration | 24 hours + 7 days + year |
| Depth | 63 mm |
| Device application | Building |
| Device short name | ITA 1c |
| Display type | Backlit LCD |
| Function available | Pulse programming External input for override Automatic winter/summer time changeover Time synchronisation via antenna possible Manual or software programming Cycle programming |
| Height | 90 mm |
| IP degree of protection | IP20 |
| Language | Danish Dutch English Finnish French German Hungarian Italian Norwegian Polish Portuguese Romanian Spanish Swedish Czech |
| Maximum number of switchings | 300 |
| Maximum switching current | 6 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1 |
| Minimum interval duration | 1 min |
| Modular device name | ITA |
| Number of channels | 1 |
| Power consumption | 1.4...1.9 W |
| Product mounting | DIN rail |
| Product or component type | Yearly programmable time switch |
| Range of product | Acti 9 |
| Type of setting | Absence for holidays function PIN code |
| Width | 35.8 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
