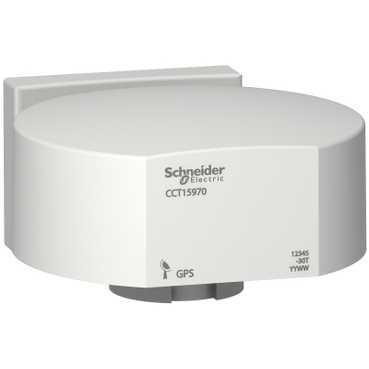

ACTI 9 - GPS antenne til ITA
| Varenr: | CCT15970 |
| El nr: | 3324000181 |
| EAN13 nr: | 3606480625213 |
| Pakning: | 1stk |
 |
| Ambient air temperature for operation | -30...55 °C |
| Cable cross section | 0.33...2.5 mm˛ |
| Current consumption | 35 mA @ 30 V 30 mA @ 12 V |
| Depth | 89.5 mm |
| Device application | Building |
| Device mounting | Wall mounted |
| Height | 38 mm |
| IP degree of protection | IP54 |
| Local signalling | LED flashing on reception activity |
| Mounting location | Outside electrical switchboard |
| Operating distance | 200 m |
| Product compatibility | Maximum 10 ITA year time switch |
| Product or component type | GPS antenna |
| Range of product | Acti 9 |
| Supply | 12...30 V DC external power supply |
| Time synchronisation protocol | GPS |
| Type of installation | Outdoor |
| Width | 75 mm |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
