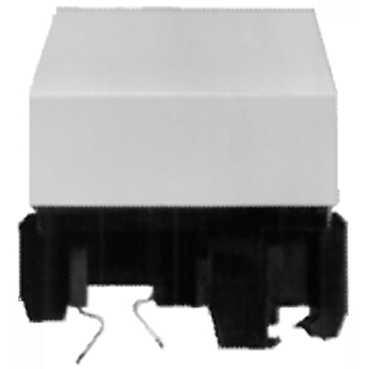

Klemme 4mm² skrue grå 5 polet
Varenr: DB6CD105
Produktet findes ikke i SAP!
 |
| [Ie] rated operational current | 30 A, 20...12 AWG CSA 30 A conforming to VDE group C 30 A conforming to UTE category C |
| [Ue] rated operational voltage | 750 V AC/DC conforming to VDE group C 750 V AC/DC conforming to UTE category C 600 V, 20...12 AWG CSA |
| Antal poler | 5 |
| Bredde | 35 mm |
| EAN-Code | 3389110371567 |
| Farve | Harmaa |
| Højde | 56.5 mm on 35 mm notched symmetrical rail 54 mm on 35 mm asymetrisk skinne 49 mm on 35 mm symmetrical DIN rail 42 mm on Telequick montageplade |
| Klemrækketype | Passthrough, with Telequick universal foot |
| Ledertværsnit | 0.75...2.5 mm², fleksibel med kabel ende 1...6 mm², solid 1...4 mm², fleksibel uden kabel ende |
| Local distributor code | 7521371389 |
| Længde | 48 mm |
| Montage | Clip-on mounting on Telequick montageplade Clip-on mounting on 35 mm symmetrical DIN rail Clip-on mounting on 35 mm notched symmetrical rail Clip-on mounting on 35 mm asymetrisk skinne |
| Nominal cross section | 4 mm² |
| Product name | TR |
| Productcertificeringer | CSA |
| Produkttype | Terminal blok |
| Quantity per set | Sæt af 10 |
| Range | Linergy |
| Reguleringskompatibilitet | TeSys Prisma - P Prisma - G |
| Stock Code | Affecte, not on stock |
| Teknologitype | Screw technology |
| Terminal block level | 1 |
| Vægt | 60 g |
Yderliger oplysninger:
Se venligst SE katalog©Schneider Electric A/S 2025
